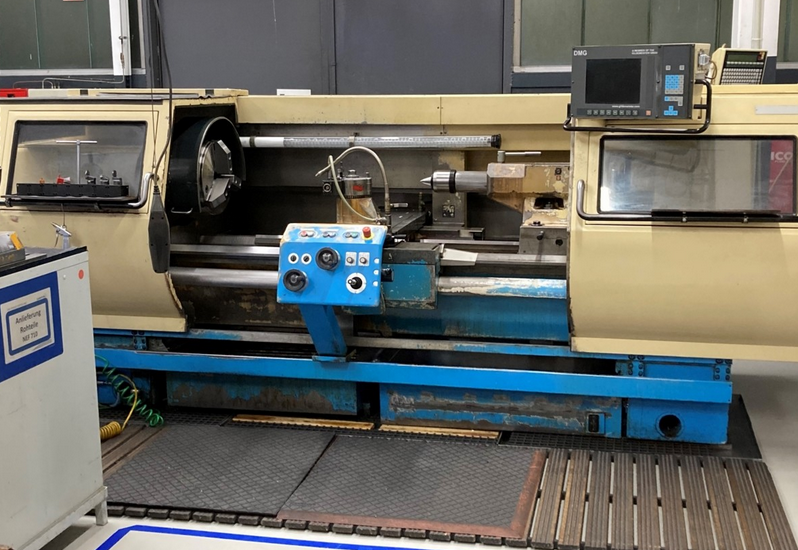

Gildemeister NC control Manual Plus 3110 Heidenhain 1800 rpm NEF Plus 710 2 Axis

Ref : 2741593-3-AW

Condition : Used

Manufacturer : Gildemeister

Controller : NC control Manual Plus 3110 Heidenhain

Spindle Speed : 1800 rpm

Model : NEF Plus 710

Nb Of Axis : 2 Axis

Year(s) : 1996

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-axis travel 385 mm
Z-axis travel 2000 mm
Rapid traverse X-axis 6 m/min
Rapid traverse Z-axis 8 m/min
Feed range X/Z-axis 1–5000 mm/min

Turning diameter over bed 710 mm
Turning diameter over face slide 420 mm
Turning length 2000 mm

Spindle bore 92 mm
Spindle head DIN 55027 Size 11
Spindle diameter in front bearing 140 mm

Main spindle speeds 16–1800 rpm
Power capacity at 100% load 22 kW
Tailstock quill taper MT 5
Quill stroke 210 mm
Quill diameter 110 mm
Total power requirement 40 kW
Machine weight approx. 5.6 t
Machine dimensions approx. 5.0 x 3.0 x 2.5 m
