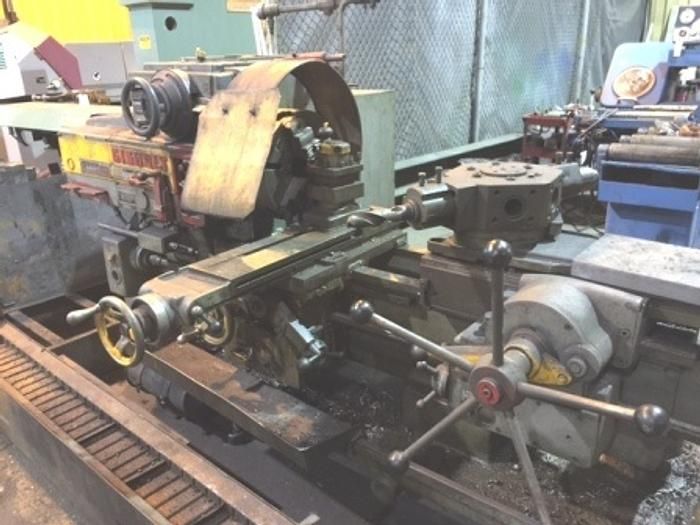

Gisholt No.5 Turret Lathe
Freight charges are not included in sale price. Freight scheduling and costs are responsibility
of the buyer. Packaging charges to ensure safety of equipment during transport for arrival on
buyers truck will be added when applicable.
Swing Over Bed......................................20"
Swing Over Cross Slide..............................10-1/4"
Max Distance Spindle Nose To Cross Slide............28-7/8"
Max Distance Spindle Nose To Turret Face............36-1/2"
Minimum Distance Spindle Nose To Turret Face........5-1/2"
Max Turning Length..................................12"
Max Bar Capacity....................................5"
Spindle Speeds......................................(24)25-1500 RPM
Spindle Nose........................................A2-8
Carriage Longitudinal Feeds.........................(6)0.004-0.045 IPR
Carriage Cross Feeds................................(6)0.003-0.027 IPR
Turret Feeds........................................(6)0.005-0.048 IPR
Turret Stations.....................................6 Stations
Main Drive Motor....................................20/10 HP
