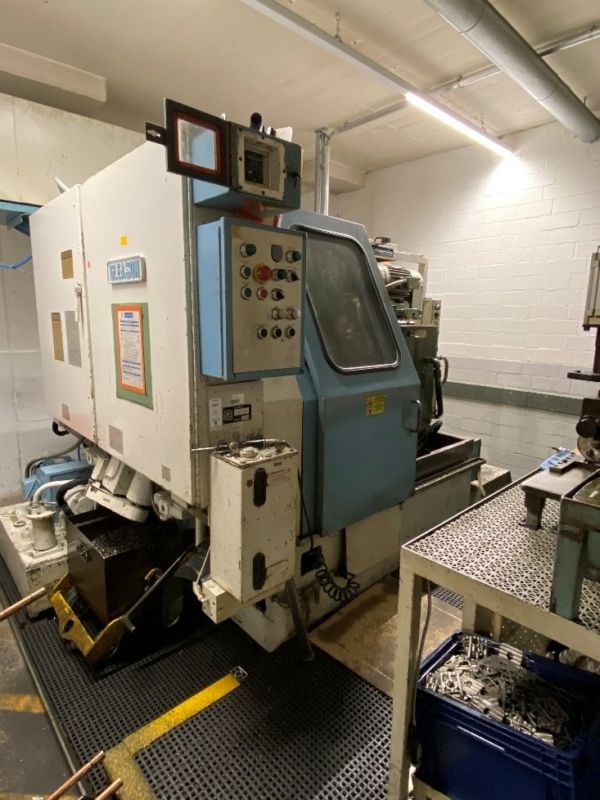

Gleason Revacycle 726 Variable Gear cutting machines

Maximum Pitch Circle Diameter: 152 mm
Number of Teeth: 8–50
Minimum Root Cone Angle: 15°
Maximum Root Cone Angle: 55°
Maximum Tooth Height: 14.8 mm
Maximum Tooth Height (21° Finished Broach Head): 10.7 mm
Maximum Tooth Width at Root: 28 mm
Broach Head Diameter: 200 mm
Maximum Broach Head Diameter: 21"
Milling Head Speed: 32.6–49.7 m/min
Feed Rate: 2–3.1 sec/tooth
Index Range: 8–50
Workpiece Spindle Taper Bore Diameter: 99 mm
Taper per Foot: 15.4 mm
Taper Depth: 15.8 mm
Countersink Behind Taper: 57.2 × 77.9 mm
Spindle Through Bore Diameter: 22.3 mm
Main Drive Motor: 10 HP
Main Drive Motor Speed: 1800/1500 rpm (60/50 Hz)
Hydraulic Motor Speed: 1800/1500 rpm (60/50 Hz)
Coolant Pump Speed: 3600/3000 rpm (60/50 Hz)
Chip Screw Motor Speed: 1800/1500 rpm (60/50 Hz)
Footprint: 320 × 221 cm
Weight: 7,500 kg
