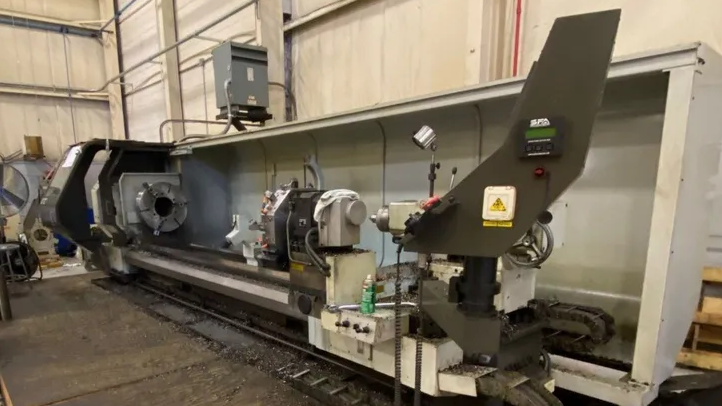

Hankook Fanuc 21i-TB control 630 RPM PROTEC 9NC 2 Axis

Ref : 2765540-3-AW

Condition : Used

Manufacturer : Hankook

Controller : Fanuc 21i-TB control

Spindle Speed : 630 RPM

Model : PROTEC 9NC

Nb Of Axis : 2 Axis

Year(s) : 2012

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X-axis travel: 21.1"
Z-axis travel: 151"

Fanuc 21i-TB control
Electronic hand wheels (MPG)
High-precision ball screws for both axes

Swing over bed: 37.4"
Swing over carriage: 24.8"
Max turning length: 151"
Distance between centers: 157"
Load capacity between centers: 11,000 lbs

Spindle bore: 10"
Spindle nose: A2-11
Spindle speed: 2–630 RPM
Spindle motor: 35 HP

(2) 24" 3-jaw chucks with 10" bore
Automatic electric 8-station turret
3 steady rests
Chip conveyor
Tailstock quill diameter: 7.1"
Tailstock spindle taper: MT #6
