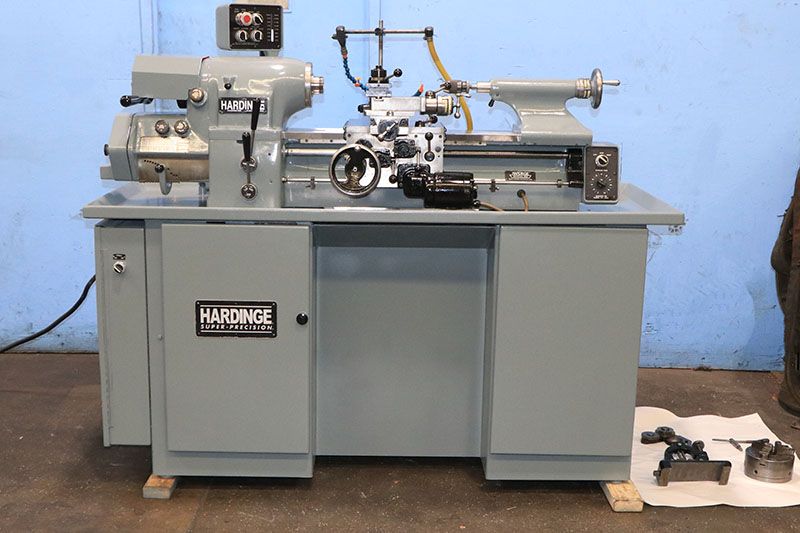

Hardinge Engine Lathe 3,000 RPM HLV-EM 2026

Spindle Construction: Hardinge Ball Bearing
Spindle Nose Threaded: 2-3/16" 10RH
Spindle Capacity with Round Type 5C Collets: 1-1/16"
Spindle Capacity with Step Chucks: 1-1/16" to 6"
Spindle Capacity with Jaw Chucks: 5"
Spindle Capacity with Expanding Collets: 3"
Variable Spindle Speeds: 125 – 3,000 RPM
Hole Through Spindle: 1-1/4"
Swing Over Bed: 11"
Swing Over Carriage: 9"
Swing Over Cross Slide: 6"
Distance Between Centers: 18"
Compound Slide Travel: 3"
Carriage Power Feed Range: 5/16 – 7 IPM
Cross Slide Power Feed Range: 3/16 – 4 IPM
Tailstock Spindle Diameter: 1-3/8"
Tailstock Spindle Taper: #2 MT
Inch Threading Range in Gearbox (36): 11 – 108 TPI
Metric Threading Range in Gearbox (36): 0.275 – 2.7 MM
Approximate Weight: 1,700 Lbs
Reground Bed Plate & New Turcite Under Carriage
Hardinge Cross Slide Reground
New Spindle Bearings
New Hardinge Cross Feed Screw & Nut
Dual Gearbox for Precision English or Metric Thread Cutting
Dual Reading Inch/Metric Dial for Compound and Tailstock
Hardinge Ball Bearing Quick Acting 5C Collet Closer
Assortment of 5C Collets
Hardinge 3-Jaw Chuck
Hardinge Four-Way Toolpost
Steady Rest
Albrecht Keyless Drill Chuck
Self-Contained Coolant System
0.5 – 1 HP Two-Speed Main Drive Motor
Wired for 208 Volt
