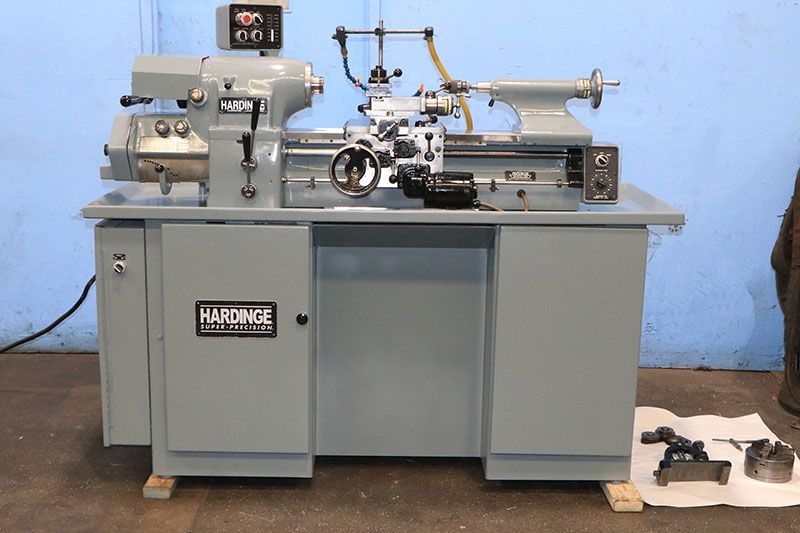

Hardinge Engine Lathe 3,000 RPM HLV-EM Reconditioned 2025

Spindle construction Hardinge ball bearing
Spindle nose threaded 2-3/16" 10RH
Spindle capacity with round type 5C collets 1-1/16"
Spindle capacity with step chucks 1-1/16" to 6"
Spindle capacity with jaw chucks 5"
Spindle capacity with expanding collets 3"
Variable spindle speeds 125 - 3,000 RPM
Hole through spindle 1-1/4"
Swing over bed 11"
Swing over carriage 9"
Swing over cross slide 6"
Distance between centers 18"
Compound slide travel 3"
Carriage power feed range 5/16 - 7 IPM
Cross slide power feed range 3/16 - 4 IPM
Tailstock spindle diameter 1-3/8"
Tailstock spindle taper #2 MT
Inch threading range in gearbox (36) 11 - 108 TPI
Metric threading range in gearbox (36) 0.275 - 2.7 mm
Approximate weight 1,700 lbs

Reground bed plate and new Turcite under carriage
Hardinge cross slide reground
New spindle bearings
New Hardinge cross feed screw and nut
Dual gearbox for precision English or metric thread cutting
Dual reading inch/metric dial for compound and tailstock
Hardinge ball bearing quick acting 5C collet closer
Assortment of 5C collets
Hardinge 3-jaw chuck
Hardinge four-way toolpost
Steady rest
Albrecht keyless drill chuck
Self-contained coolant system
0.5 - 1 horsepower two-speed main drive motor wired for 208 volt
