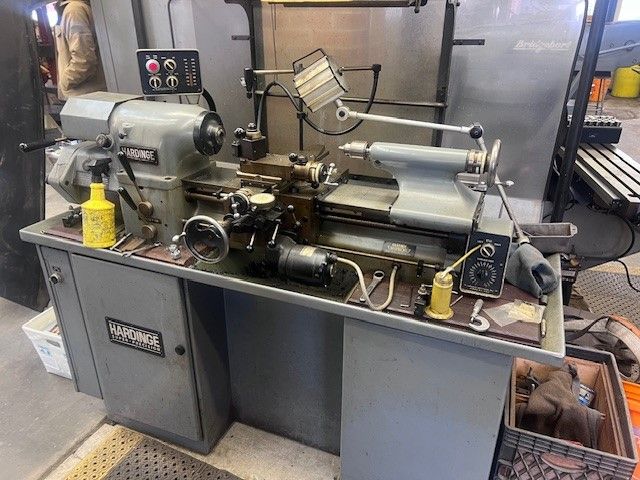

Hardinge Engine Lathe 3000 RPM (infinitely variable) HLV-EM

Swing over bed: 11 in
Swing over carriage: 9 in
Swing over cross slide: 6 in
Distance between centers: 18 in
Spindle speed: 125–3000 RPM (infinitely variable)
Spindle bore: 1-1/4 in
Tailstock spindle diameter: 1-3/8 in
Tailstock spindle travel: 3-3/4 in
Tailstock spindle taper: #2 MT
Compound slide travel: 3 in
Carriage power feed range: 5/16–7 IPM
Cross slide power feed range: 3/16–4 IPM
Threading range: 11–108 TPI
Metric threading range: 0.275–2.7 mm
Approximate dimensions: 68 in × 30 in × 60 in
Approximate weight: 1700 lb
1.5 HP two-speed motor
Hardinge super-precision preloaded ball bearing spindle
Hardinge tapered spindle nose
5C collet system with closer
Taper turning attachment
Aloris quick change toolpost with holders
Faceplate
Jacobs drill chuck for tailstock
Live and dead center for tailstock
Assortment of 5C collets
Coolant system
Inch/metric dual dials on tailstock and compound
