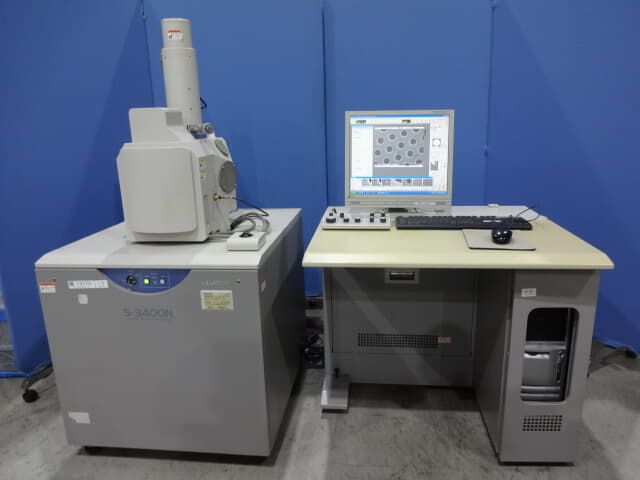

Hitachi S-3400N

Hitachi Scanning Electron Microscope S-3400N
Secondary Electron Image Resolution: 3.0nm (High Vacuum Mode),
10nm (High Vacuum Mode, Acceleration Voltage 3kV)
Backscattered Electron Image Resolution: 4.0nm (Low Vacuum Mode)
Magnification: 5 to 300,000x
Filament: Cartridge (Tungsten Hairpin Filament)
Acceleration Voltage: 0.3 to 30kV
Image Shift: ±50um or less (WD=10mm)
Sample Fine Movement Device: Type II 5-axis Motor Drive Unit
X 0 to 100mm, Y 0-50mm
Z(WD) 5-65mm, Sample rotation 360 degrees, Sample tilt -20-90 degrees
Maximum sample size: 200mm diameter
Dimensions and weight: Main unit W700×D800×H1460mm, 360kg
Display unit W850×D800×H1200mm, 120kg
Power supply: Single-phase AC100V, 2KVA, 60/50Hz (for main unit)
Accessories/Options
PC, SEM Data Manager, 5-axis motor drive unit,
Oil rotary pump GLD-137E x 1, Weight x 1, Compressor Hitachi 0.2P-5S,
Instruction manual, Sample holder, Sample stage height adjustment jig, etc.

Equipment Status
Instruction manual included
The acrylic cover on the front door containing the PC in the display unit
(operating desk) is missing. There's no latch, so the door won't close.
