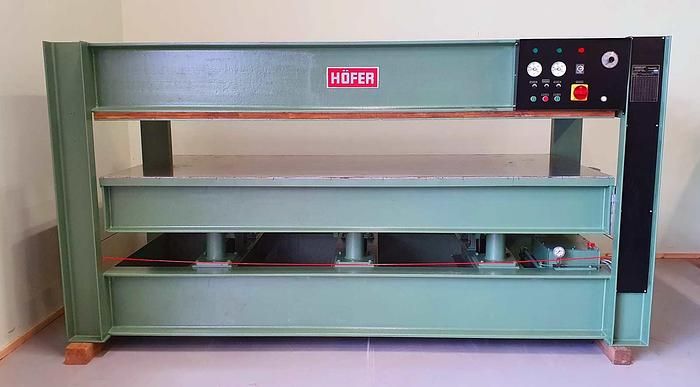

Hofer H120 SS

Hydraulic veneer
platform size 3000 x 135cm
Total pressure (kN) 1200
Spec. pressure ( N/cm2 ) 60
Connected load kW 16,8
Hydraulics 2,2 kW
Operating temperature (C): 150
Max temperature 180 C
Number of cylinders / diameter : 6 /85
Opening= stroke 350mm
Heating time 80 C 12min
Closing time 12 sec

Full passage on all 4 sides
Lockable main switch
Push button control
Stop button
Safety line on each side
Timer
Automatic temperature control system
Stroke limitation
Handrail compensation
total weight 6200 Kg
space requirement: L X W x H =348 x 151 x 180cm
CE-marked
