IMMEQUIP CEMH-LAM360 Laminator

Structure & design: All-stainless steel 304L mechanically welded frame
Fitted with 4 pivoting wheels with brakes

Dimensions
Longueur totale : 3550 mm
Hauteur tapis entrée : 1025 mm (±15 mm réglable)
Hauteur tapis sortie : 737 mm
Largeur bandes : 360 mm

Conveyor: Inlet conveyor
– White silicone NEOBELTING belt
– Maximum temperature: 90°C continuous
– Speed: 17 m/min
– Motor: 0.25 kW – three-phase 400V
– Product guidance via stainless steel comb

Conveyor system: Exit conveyor
– White silicone NEOBELTING belt
– Speed: 43 m/min
– Motor: 0.37 kW – three-phase 400V
– Integrated air blow-off ramp

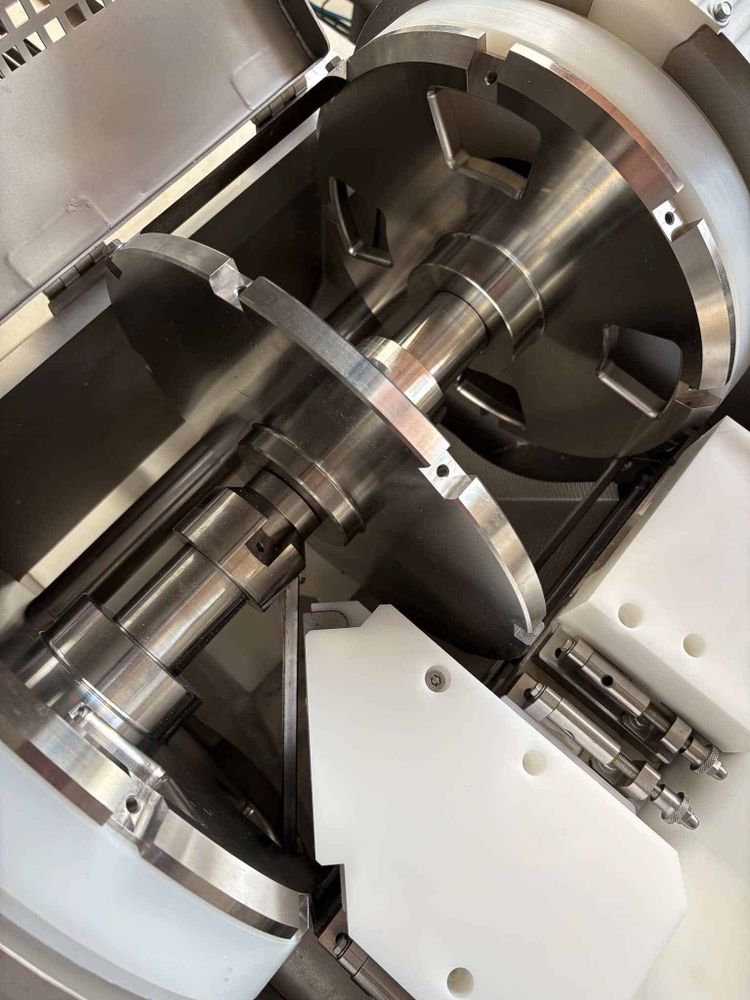

Cutting unit
– Cutting wheel Ø350 mm
– 3 blade holders (45° and 90°)
– 3 ground hardened steel blades (Z30C13 – 40/42 HRC) – additional blades can be fitted
– Rotational speed: 72 rpm
– Motor: 0.37 kW – three-phase 400V
– Stainless steel housing with adjustable pressure roller
– Stainless steel roller guide
– Cutting kit available: 90° and 45°

Product orientation kit: 2 symmetrical sets, each comprising 1 cell, 1 stop flap and 1 pneumatic cylinder

Rolling function
– Non-motorised hollow stainless steel roller, Ø140 x 350 mm
– Gap adjustment: manual
– Adjustable anti-clogging scraper

Power supply: Three-phase 400V – 50 Hz
Danfoss VLT frequency converters
Operator display (HMI)
Full machine control
Buzzer + power-on indicator light
Emergency stop buttons (including 1 on the cutting unit side)
