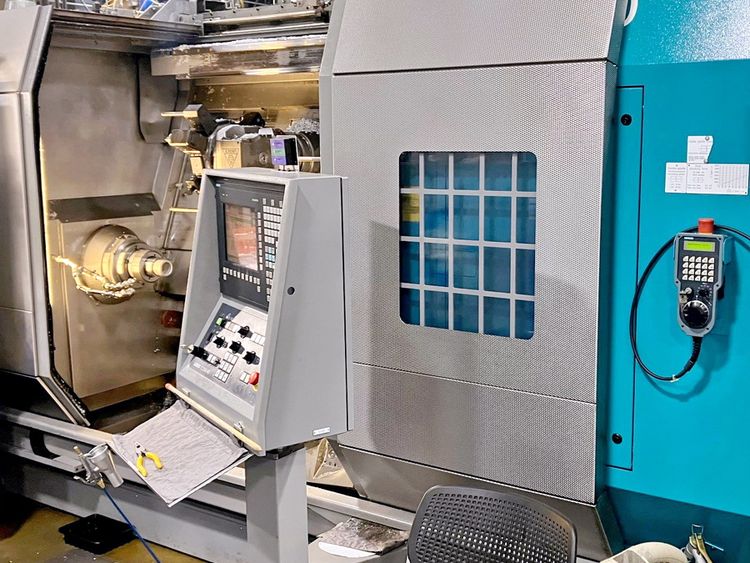

Index C200-4D Siemens 840 D 5.000 U/min G 250 5 Axis

INDEX G 250
Year 2016

Control C200-4D Siemens 840 D
swing diameter 560 mm
turning length 1.400 mm
control C200-4D Siemens 840 D

Main spindle:
spindle head 6 DIN 55026/55021 ISO 702/1
bar capacity 65 mm
spindle diameter in front bearing 110 mm
turning speed range - spindle ~ 5.000 U/min
drive capacity - spindle motor 100% / 40%: 43 / 57 kW
Torque 21,5 Nm
Indexing 2,5 °
C-Axis 0,001 °
Subspindle:
C - Axis 0,001 °
Number of Turrets 3
turret (x-stations) 3 x 12 pos

Turret 1:
number of toolpositions 12 pos.
Spindle speed - driven tool stations ~ 6.000 min -1
power capacity - driven tool-stations 11 kW
tool taper 30 x 55 mm DIN 69880
travel -x axis 300 mm
travel -y axis 190 mm
travel -z axis 1.400 mm
b - axis 360 °
Holding Torque B: 3.000 Nm
rapid traverse B: 360 °/sec
feed power Y: 16.000 N

Turret 2:
rapid traverse X-axis 22,5 m/min
rapid traverse Z-axis 45 m/min

Turret 3:
total power requirement 108 kVA
weight of the machine ca. 14 t
dimensions of the machine ca. 8,0 x 2,6 x 2,5 m

Accessories
Chip conveyor
Coolantsystem 900 L
high pressure coolant 8 / 20 / 80 bar
main spindle
Subspindle
Turret 3x
