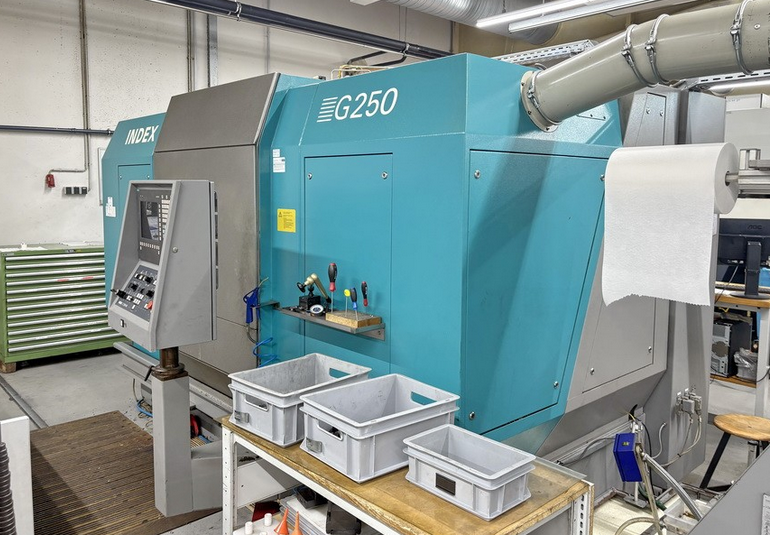

Index CNC CONTROL 6,000 min⁻¹ G 250 2 Axis

Swing diameter: 560 mm
Turning length: 800 mm
Control: C200-4D Siemens 840 D
C axis: 0.001°
Main spindle bar capacity: 90 mm
Main spindle diameter in front bearing: 140 mm
Turning speed range - spindle: ~3,500 U/min
Spindle drive capacity: 100% / 40%: 43 / 57 kW
Torque: 21.5 Nm
Indexing: 2.5°
Turret number: 1
Turret tool positions: 12
Spindle speed - driven tool stations: ~6,000 min⁻¹
Driven tool power: 11 kW
Tool taper: 40 × 63 mm DIN 69880
X axis travel: 300 mm
Z axis travel: 800 mm
Rapid traverse: 10 m/min
Feed power Z: 9,000 N
Tailstock quill diameter: 65 mm
Tailstock cone: SK 30
Tailstock longitudinal travel: 800 mm
Total power requirement: 51 kVA
Machine weight: 14 t
Machine dimensions: 7.3 × 4.0 × 2.6 m
Automatic front door
Chip conveyor
Coolant system: 80 l/min, 8 bar
Driven tools: ~15
Exhaust fan
Hollow chuck unit: D90
Signal light
Three jaw chuck: SMW KNCS-N 225-65-3
Tool holders: ~55
