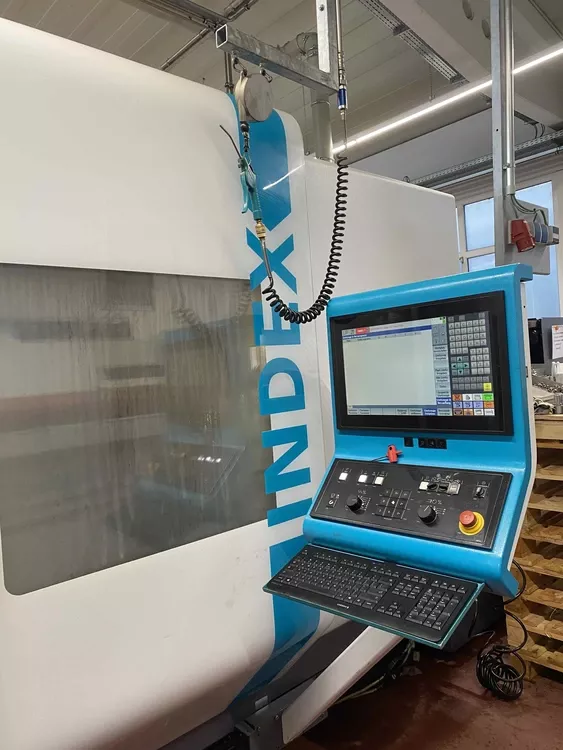

Index CNC control Siemens 840D Solution Line Variable Speed G-220 4 Axis

X-axis included
Z-axis included
Y-axis included
B-axis included
CNC control Siemens 840D Solution Line
Main spindle D90
Counter spindle D90
Clamping pressure device 8 to 80 bar
Upper tool carrier with motor milling spindle HSK-T63
Tool carrier 2 with X, Y, Z-axis and turret head with 12 stations VDI30
Tool changer with chain magazine double-row HSK holder 2 x 50 HSK 63
Tool management type "Milling machine" with relative D-number
Cooling unit included
Automatic work door included
Light barrier for drill breakage control
5-axis simultaneous machining for motor milling spindle
Motor current-based tool monitoring system
Management of tools with setup dialog (max. 250 tools)
Workpiece measuring on main or counter spindle
Measuring cycles included
Follow-up center for cross slide 2
Tailstock function in the counter spindle
Electronic shaft included
Grinding cycles included
Chip conveyor included
Filter included
Coolant system ECO-Fluid 3 pumps 3, 8, 20-80 bar
UNIMAG4 included
Portal removal device included
Transport belt included
