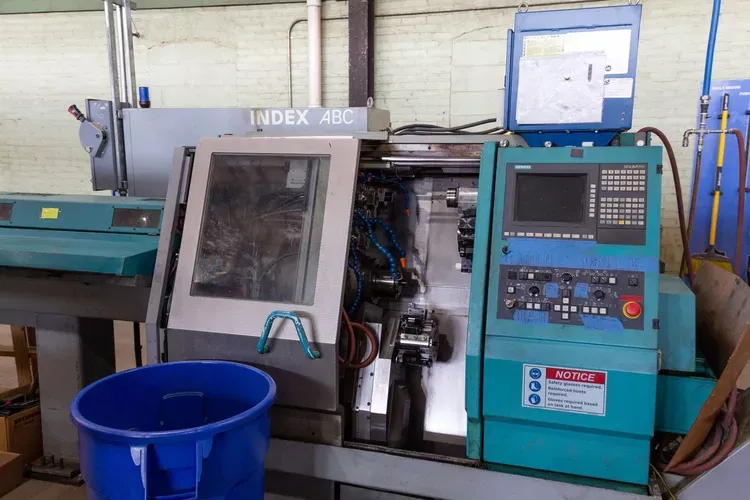

Index CNC control Siemens SINUMERIK 840C 4,500 RPM ABC 2 Axis

Bar capacity 65 mm
Main spindle speed max. 6,000 RPM
Main spindle power 20 kW (@ 100%)
Main spindle power 27 kW (@ 40%)
Synchronous spindle speed max. 4,500 RPM
Synchronous spindle power max. 4.2 kW
12-ft Bar Feeder included
Chip conveyor included
Tool Carrier 1: 8 (7 + synchronous spindle)
Tool Carrier 2: 6
Ran oil lubrication system
Power requirements 400 V / 60 Hz / 3 PH
Turning Center dimensions L 80" x W 48" x H 65"
Bar Feeder dimensions L 150" x W 27" x H 52"
Power Enclosure dimensions L 52" x W 18" x H 70"
Chip Conveyor dimensions L 88" x W 48" x H 35"
Includes a good amount of tooling
