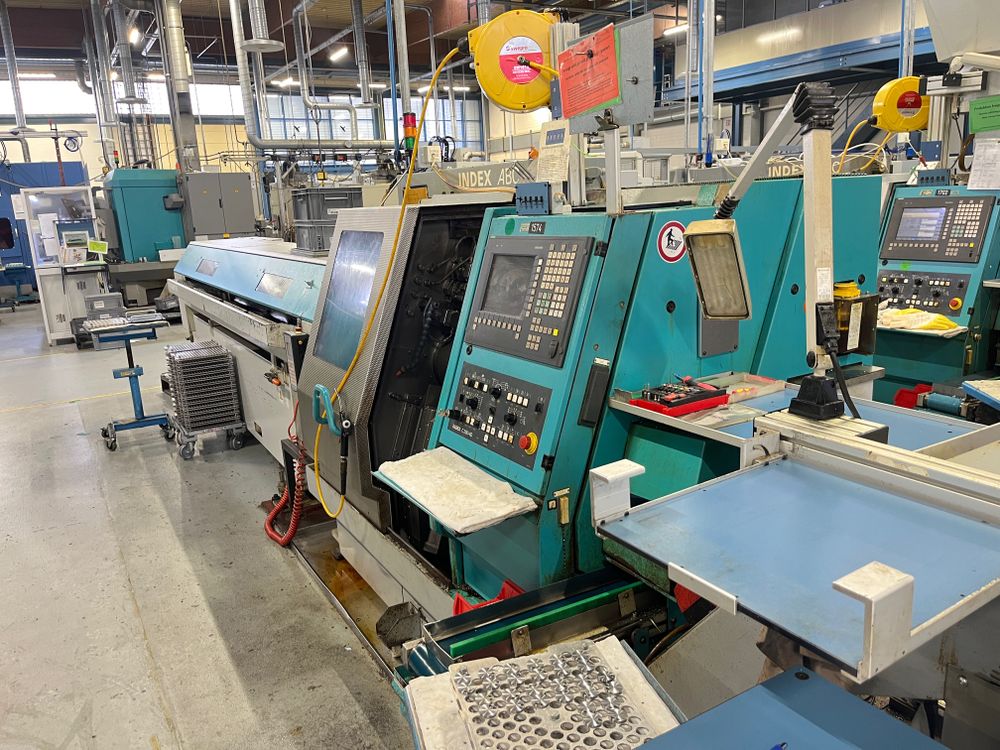

Index Control Siemens 840D 5000 rpm ABC 2 Axis

X-Axis Travel (Turret 1) 90 mm
Z-Axis Travel (Turret 1) 280 mm
X-Axis Travel (Turret 2) 81 mm
Z-Axis Travel (Turret 2) 80 mm
Control Siemens 840D
Collet Chuck Hainbuch
Number of Spindles 2 (Main / Counter Spindle)
Spindle Motor Power 29 kW
Spindle Bore 52 mm
Max Turning Length 280 mm
Max Spindle Speed 5000 rpm
Turret 1 Tool Positions 8
Rapid Traverse X/Z (Turret 1) 24 m/min / 24 m/min
Feed Force X/Z (Turret 1) 5500 Nm / 5500 Nm
Turret 2 Tool Positions 6
Rapid Traverse X/Z (Turret 2) 16 m/min / 24 m/min
Feed Force X/Z (Turret 2) 8300 Nm / 5500 Nm
Machine Weight 3000 kg
Machine Dimensions 6000 x 2000 x 2000 mm
Bar Feeder Breuning Profimat Included
Hollow Clamping Cylinder Defective (Needs Replacement)
