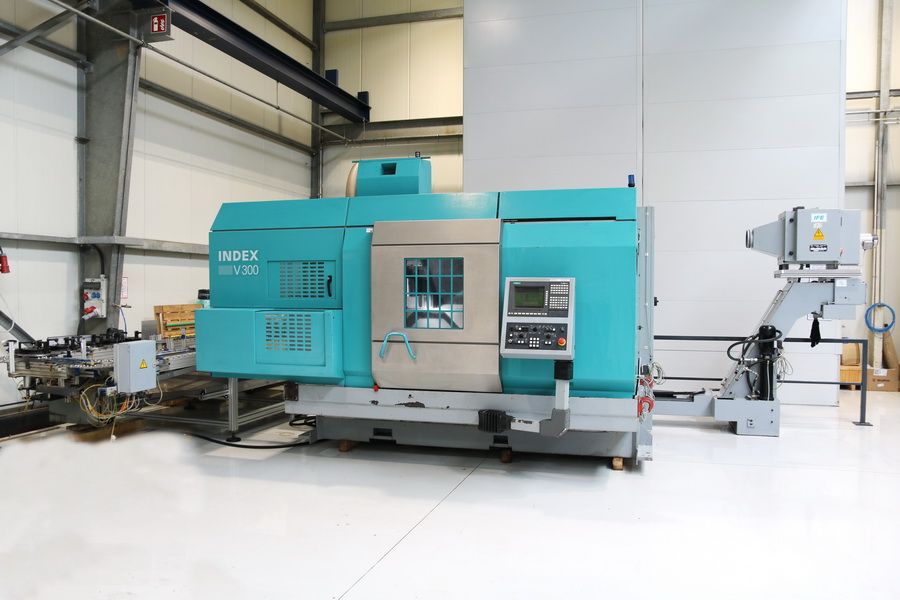

Index Siemens 840D 4200 rpm V 300 Y/B 5 Axis

X-Axis Travel: 730 mm
Z-Axis Travel: 340 mm
Y-Axis Travel: ±90 mm
C-Axis Resolution: 0.001°
B-Axis Rotation: +270° / -90°
Control: Siemens 840D
Swing Diameter: max. 450 mm
Chuck Diameter: 400 mm
Max Spindle Speed: 4200 rpm
Main Spindle Power: 35.5 / 56 kW
Max Torque: 19 Nm
Driven Tool Spindle Speed: 6000 rpm
Driven Tool Power: 9.5 kW
Rapid Traverse X: 40 m/min
Rapid Traverse Z: 30 m/min
Turret: 2 × 12 positions
Driven Stations: 2 × 12 positions
Tool System: VDI 30
Three Jaw Chuck: Schunk Rota NCD 400-165
Live Tool Holders: 39
Tool Holders: 39
Pallet Changer: 24 positions
Pallet Size: 410 × 300 mm
Max Workpiece Diameter: 300 mm
Max Workpiece Weight incl. Pallet: 25 kg
Chain Width: 75 mm
Band Speed: 7.5 m/min
Coolant System: 5.3 bar
Exhaust Fan: IFS-IFE 2000, 0.75 kW
Chip Conveyor
Hydraulic System
Documents
Ball Screw Spare Part
Total Power Requirement: 56 kW
Machine Weight: approx. 9.0 t
Machine Dimensions: 8.5 × 6.0 × 2.7 m
