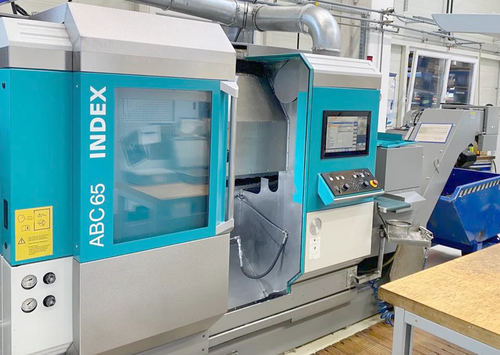

Index Siemens Sinumerik 840D 6000 RPM (stepless) Werke ABC 65 4 Axis

Number of turning spindles: 2
Number of revolvers: 2
Longitudinal travel (Z-axis): 300 mm
Transversal stroke (X-axis): 140 mm
Transversal travel (Y-axis): 100 mm
C-axis resolution main spindle: 0.001°
Control system: Siemens Sinumerik 840D
Spindle bore: 65 mm
Spindle diameter: 140 mm
Back spindle internal diameter: 65 mm
Back spindle spindle diameter: 110 mm
Main spindle speed range: 0–6000 RPM (stepless)
Back spindle speed range: 6000 RPM
Main spindle power: 25 / 35 kW
Main spindle torque: 80 / 120 Nm
Back spindle power: 5 / 9 kW
Back spindle torque: 10.5 / 20 Nm
Driven tools power: 7.5 / 9 kW
Rapid traverse X axis: 30 m/min
Rapid traverse Z axis: 50 m/min
Tool shank cross section: 45 mm
Turret positions tool turret 1: 10
Turret positions tool turret 2: 9
Turret positions back turret: 8
Driven tools turret 1: 10
Driven tools turret 2: 9
Driven tools back side: 5
Indexing time: 0.4 s
Number of axes: 7
Voltage: 400 V, 3-phase, 50 Hz
Total installed power: 41 kW
Coolant system tank: 300 L
High pressure coolant: 80 bar
Paper filtration system included
USB interface included
Automatic parts removal included
Workpiece conveyor included
Chip conveyor included
Collet device included
Lamp included
Water cooler included
Set of toolholders included
Machine weight: 6500 kg
Machine dimensions (L×W×H): 3600 × 1280 × 1950 mm
Z-axis revised: 2023
Condition: Used
