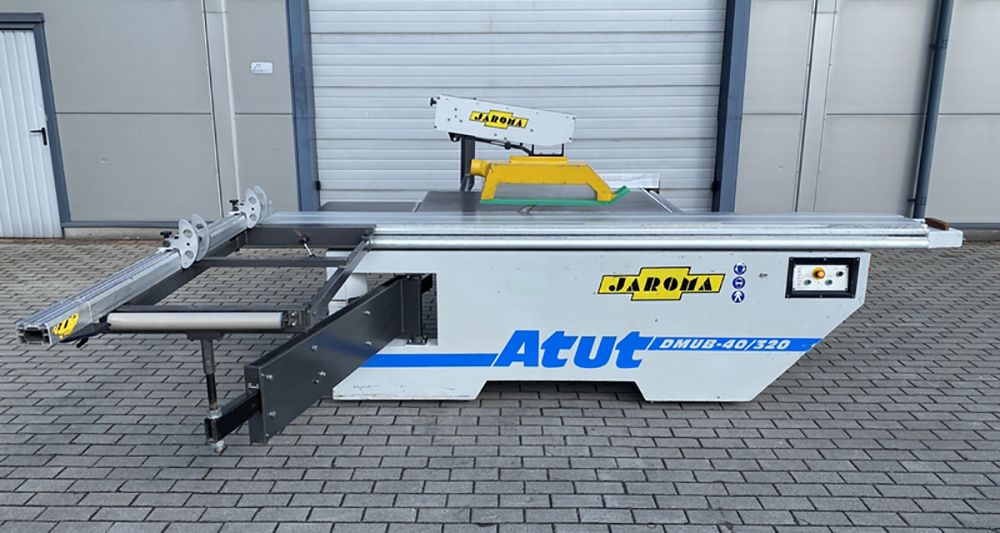

Jaroma DMUB 40

Sliding table saw
Cutting length 3200 mm
Cutting width 1300 mm
Main blade motor 6 kW
Scoring saw motor 0.75 kW
Cutting height 90° 110 mm
Cutting height 45° 78 mm
Cutting angle adjustment 0° - 45°
Maximum cutting blade diameter 400 mm
Scoring saw blade diameter 120 mm
Main blade spindle diameter 30 mm
Scoring saw spindle diameter 20 mm
Cutting height adjustment
Blade guard
Table extension and table extension
Two latches on the side carriage
Safety switch on the carriage
Main blade motor brake
Three main blade speeds: 3000 / 4000 / 5300 rpm
Scoring saw speed: 8500 rpm. Extraction ports: 140 mm, 80 mm
Machine transport dimensions (L/W/H): 3200 x 2200 x 1700 mm
Weight: ~1250 kg
