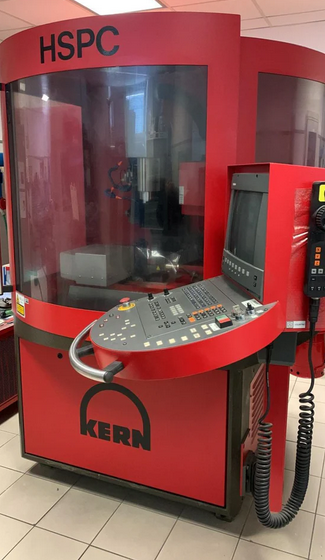

Kern HSPC 4 Axis

X-axis travel: 250 mm
Y-axis travel: 220 mm
Z-axis travel: 250 mm
A-axis swivel angle: -100° / +100°

Tool magazine capacity: 32
Tool diameter max: 50 mm
Tool length max: 75 mm
Tool change time: 3 s
Chip-to-chip time: 7 s
Spindle nose: HSK-A25
Spindle speed from: 300 rpm
Spindle speed up to: 20000 rpm
Feed range: 0–6000 mm/min
Rapid traverse: 6 m/min
Air connection: 6 bar
Voltage: 3x 400 V 50 Hz
Total power required: 8 kW
Machine weight: 2800 kg
Machine length: 1957 mm
Machine width: 1500 mm
Machine height: 2100 mm
Cabinet length: 1000 mm
Cabinet width: 600 mm
Cabinet height: 2100 mm
Coolant capacity: 42 l

Features / Equipment
Set of toolholders
Touch probe
Laser tool setting system
4th and 5th axis dividing attachment
Electronic handwheel
Lamp
Oil mist extractor
RS232 interface
