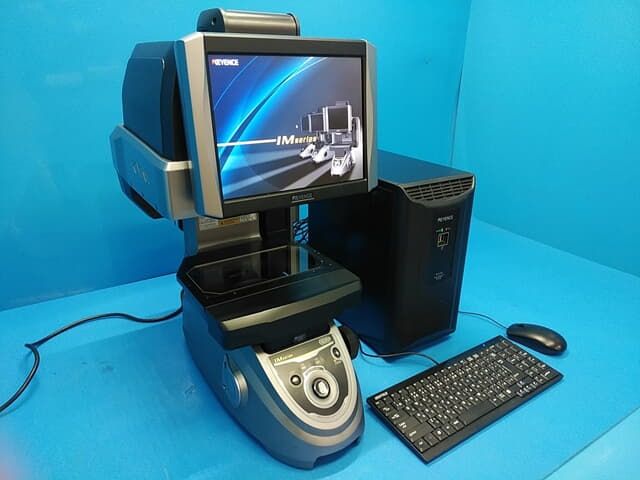

Keyence IM-6700 [IM-6225T]

Image Dimension Measuring Instrument

Specifications
-Controller: IM-6700
-Measuring Head: IM-6225T (Variable Lighting, Height Unit Type)
-Image Sensor: 6.6 Megapixel Monochrome CMOS
-Display: 10.4-inch LCD Monitor
-Field of View: φ100×L200mm (Wide Field of View Measurement Mode),
φ25×L125mm (High Precision Measurement Mode)
-Minimum Display Unit: 0.1μm
-Image Measurement Accuracy ±2σ: [Without Linkage]
Wide Field of View Measurement Mode: ±5μm,
High Precision Measurement Mode: ±2μm
[With Linkage] Wide Field of View Measurement Mode: ±(7+0.02L)μm,
High-precision measurement mode: ±(4+0.02L)μm
Height measurement area XY: Wide-field measurement mode: 45×95mm,
High-precision measurement mode: 7.5×25mm (standard probe)
Wide-field measurement mode: 95×95mm,
High-precision measurement mode: 60×25mm (wide-range probe)
Height measurement accuracy: ±7.5μm (standard probe),
±15μm (wide-range probe)
Interface: LAN RJ-45 (10BASE-T / 100BASE-TX / 1000BASE-T),
USB2.0 Series A
・Data storage: 250GB
・Lighting: Transmitted light, telecentric, adjustable illuminance
Epi-illuminated light, slit ring (directional) lighting (electric),
4-division multi-angle lighting (electric)
・Stage: X-stage 100mm (electric), Z-stage 30mm (electric)
・Stage load capacity: 2kg
・Power supply: AC100V-240V 50/60Hz, 310VA or less
・Weight: Controller approx. 8kg, head approx. 34kg

[Equipment status]
Instruction manual included
