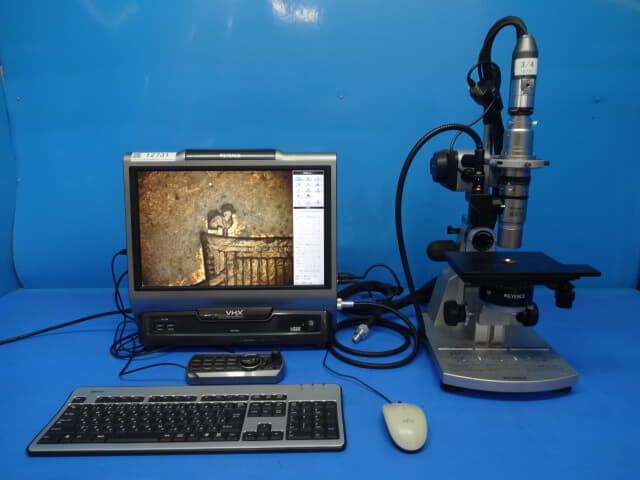

Keyence VHX-1000

Main Unit Specifications
Controller Unit: VHX-1000 (Camera Unit: VHX-1020)
Image Sensor: 1/1.8-inch 2.11-megapixel CCD image sensor
Resolution: 2 million pixels
LCD Monitor: 17-inch color LCD (TFT type)
Pixel Pitch: 0.1905mm (H) × 0.1905mm (V)
Hard Disk Capacity: 160GB
Autofocus Function: Yes
Video Recording: Yes
Illumination: Coaxial Incident Illumination
Halation Removal Function: Yes
Depth Composition/3D Display Function: Yes
OS: Windows Vista Ultimate

Contents
・Free-Angle Observation Stand (VH-S50)
・For Free-Angle Observation System Z-axis motorized stage (VHX-S50F)
• Lens: VH-Z100R (100-1000x) *No automatic magnification recognition function
• Camera: (VHX-1020)
• Other: Keyboard, mouse, console, coaxial incident illumination fiber
• Image stitching function, depth enhancement
(real-time depth stacking, quick 3D, high-quality depth stacking), etc.

Equipment Status
*Instruction manual included
*The instruction manual for VH-Z100R is not included,
but the instruction manual for VH-Z100 is included.
*It is possible to change or add the zoom lens VH-Z20R (20-200x).
*Please contact us separately regarding other lenses
and optional items you would like.
*Automatic magnification recognition function is
not available. Magnification can be changed manually
from the operation screen.
