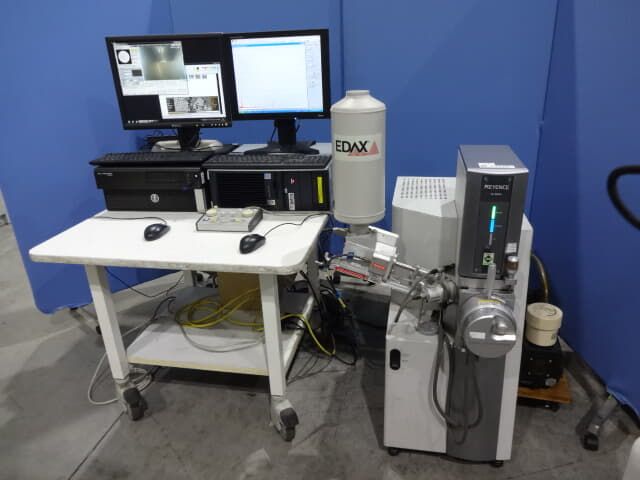

Keyence VE-8800

Magnification: 15 to 100,000 times *Varies depending on observation mode, subject, and installation environment.
- Acceleration voltage: 0.5kV to 20kV
Observation image: Secondary electrons
・Observation mode: High vacuum
・Image saving format: TIFF/JPG
- Maximum sample size: diameter 64mm
・Inside sample chamber observation function: viewport, color camera
・5-axis sample stage: X32mm, Y32mm, Z8-30mm, 360 degree rotation, -10 to +90 degree tilt
XY axis is electrically operated and can be operated from the console.
・Power supply: AC100V±10%, 50/60Hz, 1500VA or less
External dimensions: Main unit (width 395 x height 975 x depth 650 mm)
Vacuum pump (width 500 x height 365 x depth 170 mm)
Weight: Main unit approx. 150 kg, vacuum pump approx. 30 kg
