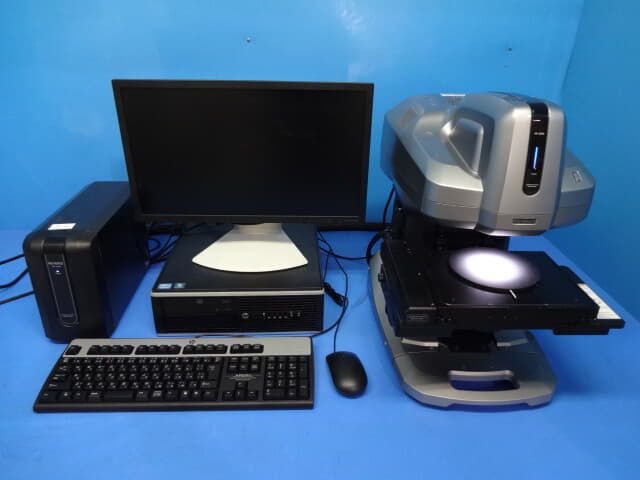

Keyence VR-3200 One-Shot 3D Shape Measuring Machine

Main Specifications
* Measurable Height: Wide-field mode 10mm,
High-magnification mode 1mm (±0.5mm)
* Magnification: Wide-field mode 12, 25, 38, 50x switchable
High-magnification mode 40, 80, 120, 160x switchable
* Digital Zoom: 1-4x
* Height Display Resolution: 0.1μm
* Repeatability: Height measurement 0.5μm /
Width measurement Wide-field mode 1μm,
High-magnification mode 0.5μm
* Linking Function: Fully automatic measurement
(XY automatic control + autofocus)
* Stage: XY stroke 184×88mm (electric)
Z stroke 90mm (electric)
Rotation function ±180° (when using tilt stage)
* Working distance: 75mm
* Power supply: AC100-240V 50/60Hz
* Accessories: PC (Win7), calibration gauge, tilt stage (rotation, tilt),
image stitching option

Equipment Status
Instruction manual included
* Calibration gauge and tilt stage (rotation, tilt) are included.
