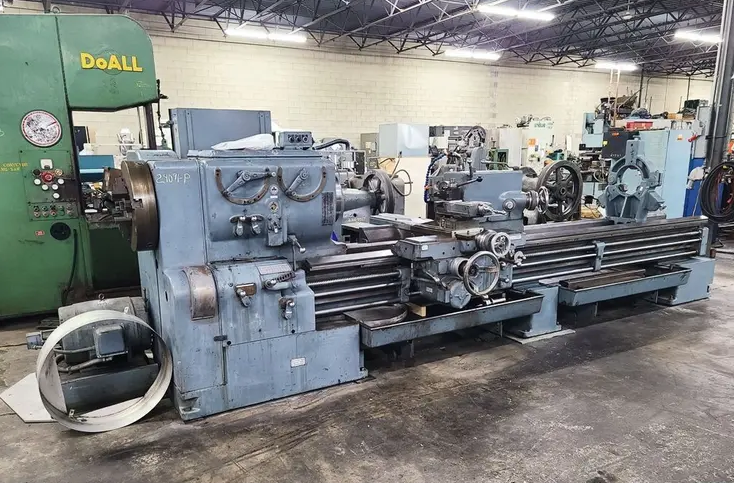

Leblond Engine Lathe 362 RPM 36X120

LEBLOND 36X120
Year: 1965

SWING.................... 36"
DISTANCE BETWEEN CENTERS. 120"
BED WIDTH................ 24"
OVERALL BED LENGTH....... 144"
(18) SPINDLE SPEEEDS..... 10 - 362 RPM
(60) FEEDS............... .0045 - .269 THOUSANDTHS PER REVE
(60) INCH THREADS........ 1 - 60 THREADS PER INCH
HOLE THROUGH SPINDLE..... 9.25"
SPINDLE NOSE............. USES FLAT BACK CHUCKS W/ 2 DIFFERENT BOLT HOLE DIAMETERS FOR 3&4 JAW CHUCKS
TAPER IN TAILSTOCK....... #5 MORES
TAILSTOCK TRAVEL......... 20"
APPROX MACHINE DIMENSIONS 228" X 72" X 74"

(2) 21" 3-JAW CHUCKS WITH 9.25" HOLES
(2) 21" 4-JAW CHUCKS WITH 9.25" HOLES (CUSHMAN BRAND)
(1) 25" FACE PLATE
11" HOLD DIAMETER BRONZE BUSHING TYPE STEADY REST
QUCK CHANGE TOOL POST (NO HOLDERS)
2-SPEED TAILSTOCK WITH THRU HOLE
TAPER ATTACHMENT (BED CLAMP IS MISSING)
RAPID TRAVERSE TO CARRIAGE & CROSS SLIDE
HARD REPLACEABLE BED WAYS IN GOOD CONDITION
(2) ROLL OUT REMOVEABLE CHIP PANS
INDEPENDENT FLOOR MOUNTED MAIN SPINDLE MOTOR
20 HP MAIN MOTOR
WIRED FOR 3 PHASE, 60 CYCLE, 220/440 VOLTS
CURRENTLY WIRED FOR 440 VOLTS
NOTE: MACHINE CAME OUT OF GOVERNMENT FACILITY. LIGHTLY USED.
