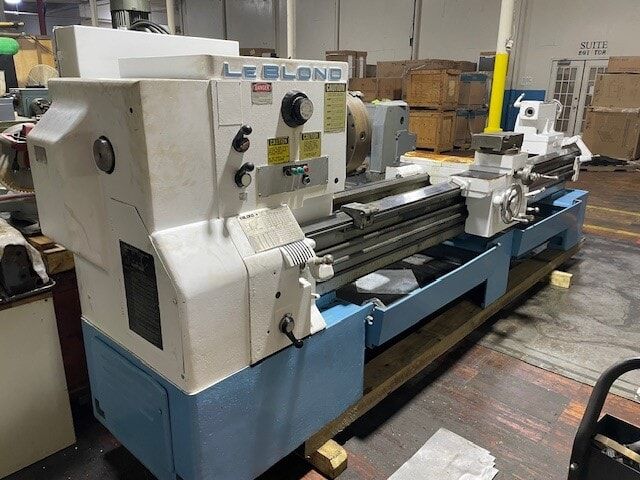

Leblond Engine Lathe 720 RPM REGAL 24” x 96”

swing over bed and carriage ways 26”
swing over cross slide 18-1/4”
distance between centers 96”
spindle speeds (12) 18 to 720 RPM
diameter hole through spindle 2-3/16”
spindle nose L-2
cross slide travel 13-1/4”
compound rest travel 4-3/4”
feed rates (48) 0.0036 to 0.205 in/rev
thread changes (48) 2 to 112 threads/inch
tailstock spindle taper #5 MT
tailstock spindle travel 7-1/2”
chuck size 12” 3-jaw universal
Servo-Shift headstock
inch/metric threading
coolant system
motor 15 HP
power 3 phase / 60 Hz / 220-440 Volt AC
floor space 168” L-R x 50” F-B x 56” high
weight approx. 7,080 lbs
