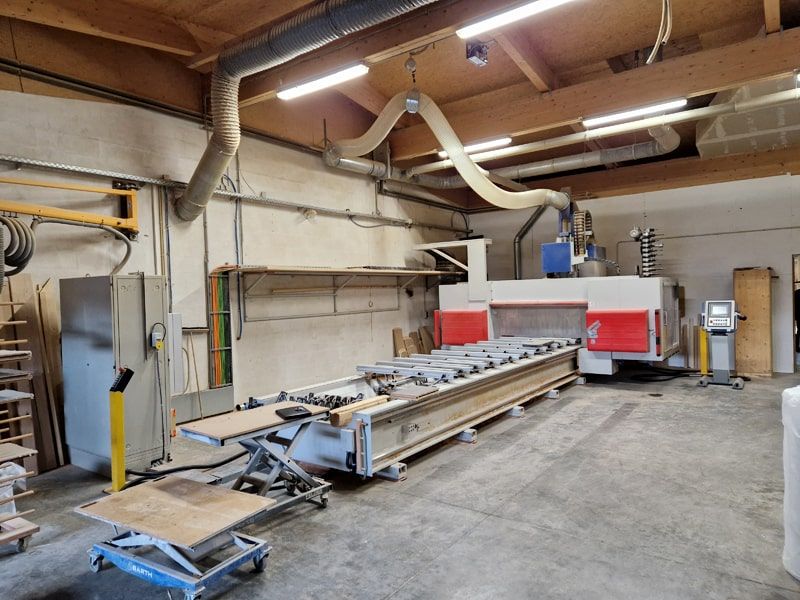

Maka FPM 470 R 5-axis

Machine name:
BWO Vektor 921 CNC control for 5-axis machining.
256 MB NC memory, USB port, mobile control panel.

– Working areas in 5-axis operation, with tool diameter 60 mm / length 160 mm:
Y-axis: 5,600 mm
X-axis: 1,600 mm
Z-axis: approx. 380 mm / at 180 mm fixture height (top of vacuum cup)

– Working areas in 3-axis operation, with tool diameter 60 mm / length 160 mm:
Y-axis: 6,000 mm
X-axis: 1,600 mm
Z-axis: approx. 380 mm / at 180 mm fixture height (vacuum cup)

A-axis 540° (rotation axis), B-axis 196° (swivel axis +/- 98°)
Rapid traverse speed: X/Y-axis 45 m/min., Z-axis 15 m/min., A/B-axis 10,000 °/min.

Milling unit:
– 1 universal unit for 5-axis milling with 50° inclined head, max. power 12.5 kW, continuously variable speed up to 17,000 rpm, water-cooled milling spindle.
– 1 NC height-adjustable chip collection system with slatted curtain.

Tool magazine:
– ISO 40 tool interface for automatic tool changing system.
– 2 chain-type tool magazines with 32 positions for tools up to 90 mm in diameter, with sorted storage up to 160 mm.
(Three positions are required for this).

Machine table:
– 10 support tubes on linear guides with pneumatic release device for quick positioning.
– 2 control circuits for "lifting/lowering" stops
– 2 control circuits for "clamping/unclamping" pneumatics
– 2 vacuum control circuits with clamping buttons and automatic reset via CNC programming.
– 2 step separators, stroke approx. 320 mm.
– Various clamping devices for posts and curved parts.
– 1 chip conveyor belt integrated into the base frame for removing chips and small waste up to a maximum of approx. 100 x 100 x 100 mm.

Tools:
– Tools are not included!

Vacuum supply:
– 1 vacuum pump, including a 250-liter tank for rapid vacuum build-up.
– Approx. 20 vacuum supports with various suction cups.
– 4 lifting/lowering stops for positioning components.

Other:
– Automatic central lubrication.
– Control cabinet with air conditioning unit.
– Projection laser

Workplace safety:
– Mobile protective cabin with safety bumpers.

Overhaul/repairs in 2018:
– Conversion of the rotary and swivel axes to a new generation of drives (digital).
– New Y-/X-/Z-axis energy chains.
– Complete new cabling, all power and measurement system cables replaced.
– All guide carriages new
– New Z-axis ball screw and guide rails.
– New X-axis guide rail.
– Control system upgrade to BWO Vektor 921, with V-CNC card and 256 MB NC memory.
– New vacuum valves and vacuum hoses.
– 2 x tool magazines + tool grippers overhauled.
– Swivel extraction system overhauled.

Software:
– It is possible to integrate a current version of the Compass staircase construction software.
Compass is the leading provider when it comes to the planning and manufacture of wooden staircases.

Design/Version:
5-axis CNC machining center for machining wood, plastic, and aluminum.
Machine in a mobile gantry design with rack and pinion drive.
The machine was most recently used in wooden staircase construction.

Availability:
The machine is assembled and ready for operation and can be inspected.
