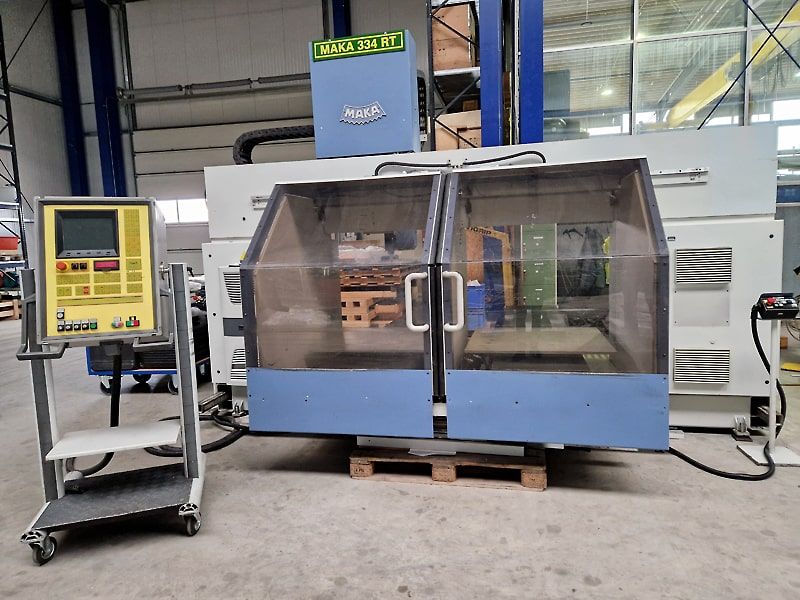

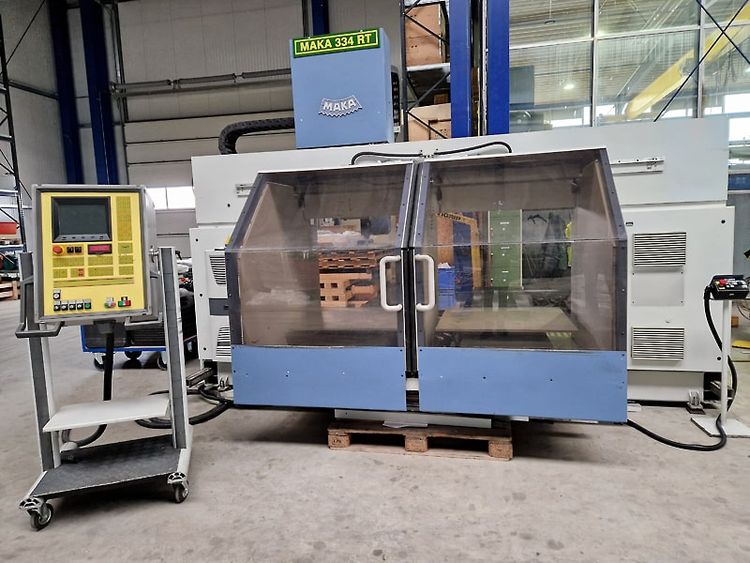

Maka KPF 334 RT 5-axis

Machine description: High-performance CNC milling center for 5-axis machining, ideal for machining deep-drawn parts.
Compact design with control cabinet integrated into the base frame.
Equipped with automatic central lubrication and a control cabinet with air conditioning.

Model/Version:
Gantry-type machine with two aluminum tables

Axis data:
Axis: Size / Travel / Speed

X-axis: 2,750 mm / 40 m/min.
Y-/V-axis: 2,400 mm / 40 m/min.
Z-axis: 700 mm / 15 m/min.
Rotation axis: 540° / 10,000°/min.
Swivel axis: 200° / 10,000°/min.

Working areas / workpiece cube dimensions:
X-axis: 2 x 1,000 mm (coupled 2,150 mm)
Y-axis: 1,000 mm
Z-axis: 400 mm
These specifications are based on a fixture height of 170 mm / tool length of 60 mm.

Equipment:
Table design:
2 aluminum surface tables with threaded bushings for mounting, each measuring 1,000 x 1,000 mm.
The tables can be coupled for machining large components.
Both tabletops are also equipped with threaded bushings and centering bushings (or dowel pins) to accommodate the customer's milling fixture, as specified.

Vacuum supply:
Machine equipped with a vacuum system.
1 vacuum pump

Clamping system:
1 vacuum clamping circuit with vacuum distribution unit, pressure gauge, and pressure switch.
Plug-in couplings attached to the machine table.

Milling unit:
1 DFM 83/90 milling spindle, ER16 / M22 x 1.5
2.5 kW / 27,000 rpm
Universal unit for 5-axis milling with 90° head, ER16 / M22 x 1.5 tool holder
1,000 to 27,000 rpm (infinitely variable speed), air-cooled.
A-axis 540° (rotation axis +/- 270°)
B-axis 200° (swivel axis +/- 100°)

Axis drives:
Ball screw in the X/Y and Z axes;
A/B axes with hollow shaft drives.

Work protection:
One automatically opening sliding door per table.
Safety cabin included.

Control system:
1 BWO 900 machine control system with 1 BWO 900C control unit, mounted on a mobile control panel.

Line voltage:
The machine is equipped for the following line voltage:
Voltage: 400 V (max. +/- 5%)
Installed power: approx. 9 kW
Frequency: 50 Hz
The use of residual current devices (RCDs) in the machine supply line is not permitted.

Consisting of:
– Operating instructions for the machine
– Operating instructions for the control system
– Electrical and pneumatic circuit diagrams
– Control system language in German.
