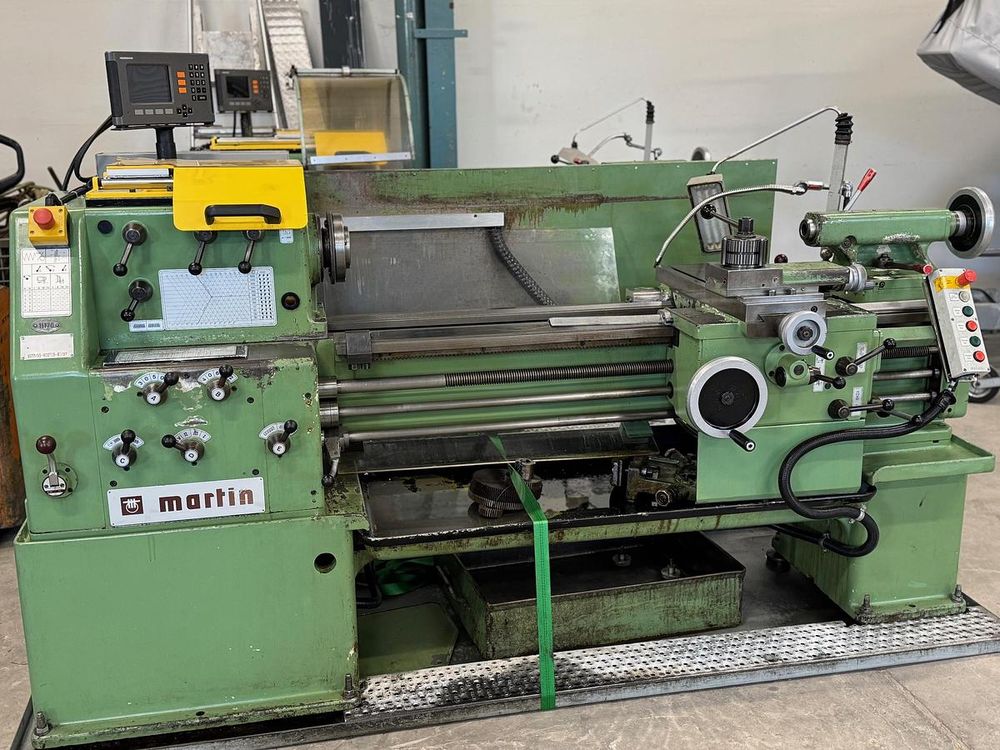

Martin Engine Lathe 1800 KM 200 x 1000

Tip height 200 mm
Turning diameter over bed 400 mm
Turning diameter over cross slide 220 mm
Faceplate diameter 400 mm
Center distance 1000 mm
Bed width 330 mm
Spindle head 6 DIN 55022
Spindle bore 45 mm
Spindle diameter front bearing 80 mm
Morse taper in centering sleeve MK4
Inner taper of turning spindle 1:20 taper 50
Spindle speeds 40–1800
Longitudinal feed 1.10–0.08 mm/rev
Plan feed 0.40–0.03 mm/rev
Metric threads 0.5–7 mm
Inch threads 56–4 TPI
Module threads 0.25–3.5
Tailstock spindle diameter 60 mm
Tailstock quill travel 170 mm
Tailstock Morse taper MK4
Drive power 5.5 kW
Workpiece weight between centers without steady rest 750 kg
Workpiece weight with steady rest 950 kg
Workpiece weight with 2 steady rests 1050 kg
Dimensions 2500 × 1500 × 1600 mm
Weight 1400 kg

Features / Equipment
HEIDENHAIN 2-axis digital readout
