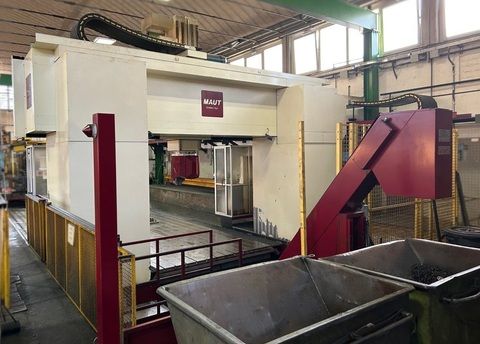

Maut EP 64 5 Axis

MAUT EP 64
2008

Control: Heidenhain iTNC 530
Floor plate size: 14000 x 3000 mm
Distance between columns: 4000 mm
Max distance spindle to table: 2700 mm
Ram size: 625 x 630 mm
X-axis travel: 11000 mm
Y-axis travel: 3500 mm
Z-axis travel: 1725 mm
X/Y/Z feedrate: 20000 mm/min
X/Y/Z rapid traverse: 40000 mm/min
X/Y/Z feed force: 15000 N
Spindle taper: ISO 50 DIN 69871
Spindle motor power: 31 kW
Maximum spindle speed: 6000 rpm
Gear steps: 2
Tool taper: ISO 50
Tool magazine capacity: 60
2-axis NC swiveling milling head
Heidenhain optical scales
Chip conveyors
High-pressure coolant through tool 15 bar
