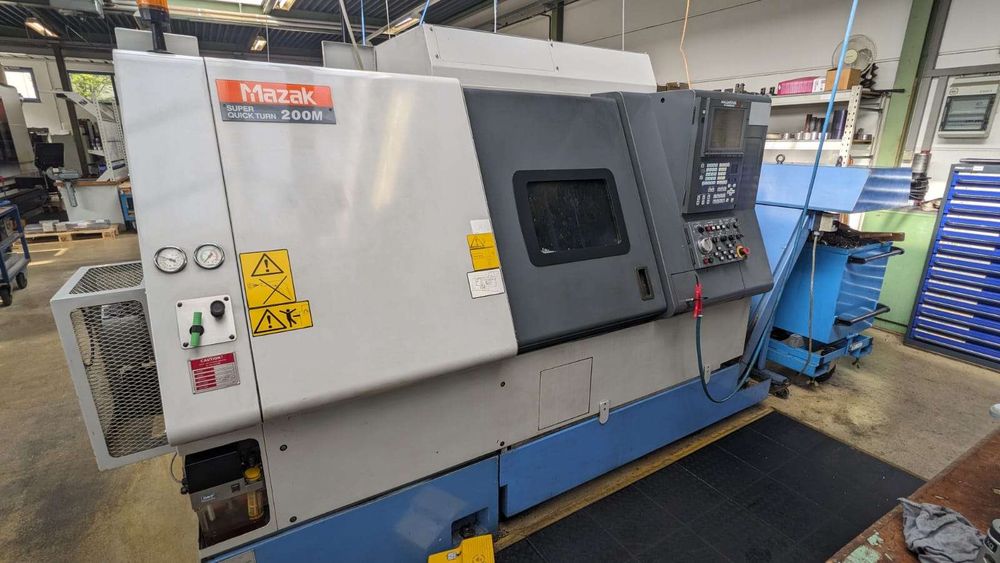

Mazak CNC CONTROL 5,000 rpm Super Quick Turn 200M 2 Axis

X-Axis Travel 190 mm
Z-Axis Travel 575 mm
Control Mazatrol T-Plus
Swing Diameter 525 mm
Turning Length 538 mm
Spindle Speed up to 5,000 rpm
Spindle Bore 61 mm
Spindle Power 18.5 kW
Spindle Torque approx. 350 Nm
Driven Tool Power 3.7 kW
Driven Tool Speed up to 4,500 rpm
Spindle Taper Morse Taper MK5
Tool Turret 12 stations
Machine Weight approx. 4,850 kg
Machine Dimensions approx. 3,100 × 1,700 × 2,200 mm
Total Connected Load approx. 35 kVA

Equipped with Driven Tools (M-Version)
Automatic Tool Turret with 12 Stations
Coolant System
CE Certified
