Mazak Control Mazak Smooth G 4000 rpm Quickturn Smooth 250 MY 3 Axis

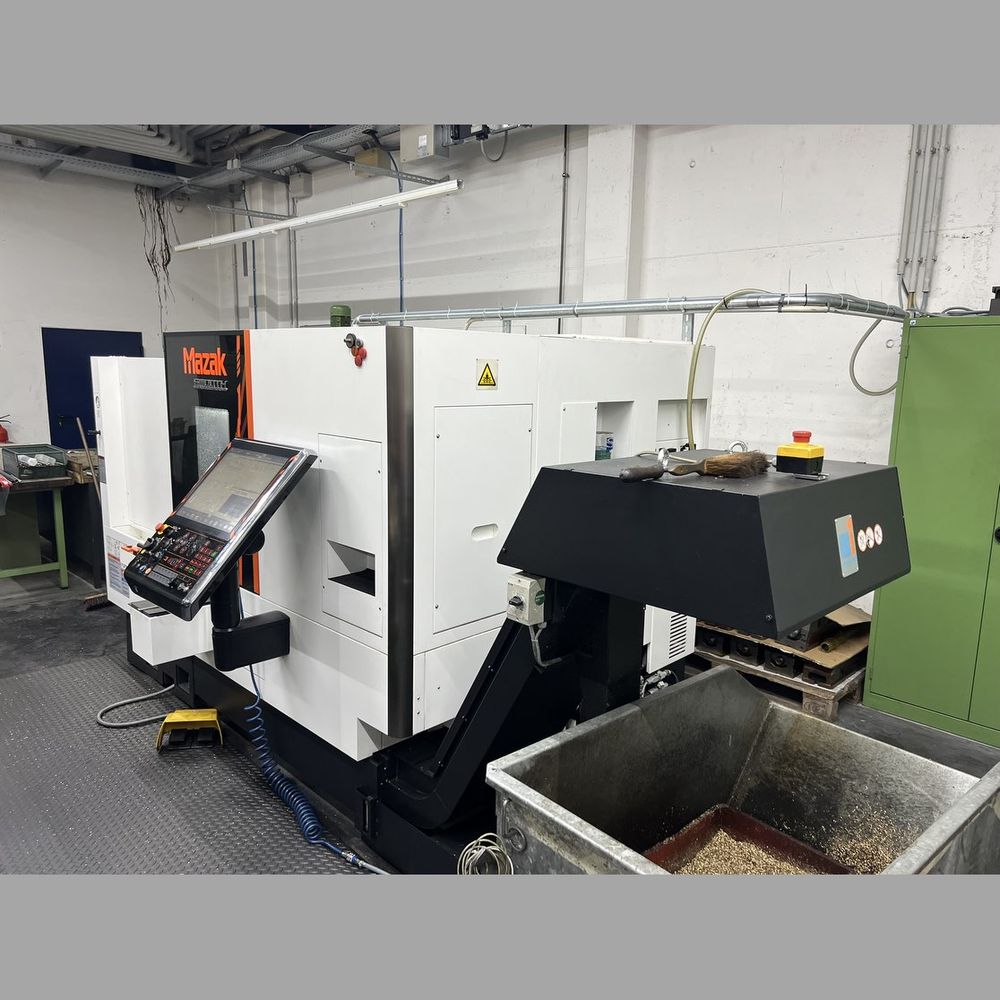

MAZAK Quickturn Smooth 250 MY
Year 2019

Control Mazak Smooth G
Turning max diameter 380 mm
Turning max length 555 mm
Main spindle max speed 4000 rpm
Main spindle power 26 kW (10-40/100% duty cycle)
Main spindle bore 91 mm
Main spindle axis C
Tailstock NC-controlled
Upper turret stations 12
Upper turret driven stations 12
Turret tool reception VDI 40
Turret tool drive speed 5000 rpm
Turret axes X/Y/Z
Travel X 234 mm
Travel Y 100 mm
Travel Z 625 mm
Rapid traverse X/Y/Z 30 m/min
Tool measurement system
Tool life time monitoring
Fully enclosed work area
Light in working area
Chip conveyor
Coolant unit
Part outfeed conveyor
Finished part pick-up unit
Total power requirement 48 kVA
Machine weight approx. 5600 kg
