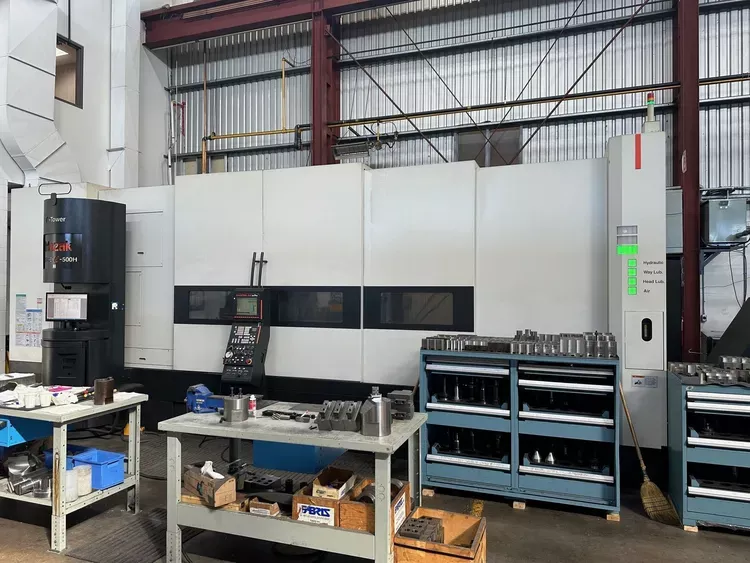

Mazak INTEGREX E-500H-3000U 4 Axis

MAZAK INTEGREX E-500H-3000U
2006

Maximum swing 32.28"
Maximum turning diameter 32.28"
Main spindle bore 4.4"
Maximum bar capacity 4.09"
Distance between centers 122.91"
X-axis travel 34.25"
Z-axis travel 122.91"
Y-axis travel 19.69"
C-axis indexing 0.001 degree
Main spindle chuck size 15"
Main spindle chuck type hydraulic
Main spindle speed 2000 RPM
Main spindle horsepower 40
ATC magazine capacity 80
Turret rotary tool spindle speed 10000 RPM
Turret rotary tool horsepower 25
Tailstock present
Steady rest present
Chip conveyor present
Tool eye automatic front spindle yes
High pressure coolant system 1000 PSI
CNC control Mazatrol Fusion 640M Pro
Machine weight 63051 lbs
15" Kitagawa 3-jaw hydraulic chuck
SMW/LNS SLU-4.0/Z steady rest 1.181"–9.646"
Mazak Super Flow 12 1000 PSI coolant system
Automatic peck cycle
Automatic power off
High/low chuck pressure
Laser measurement
Consep 2000 chip conveyor
