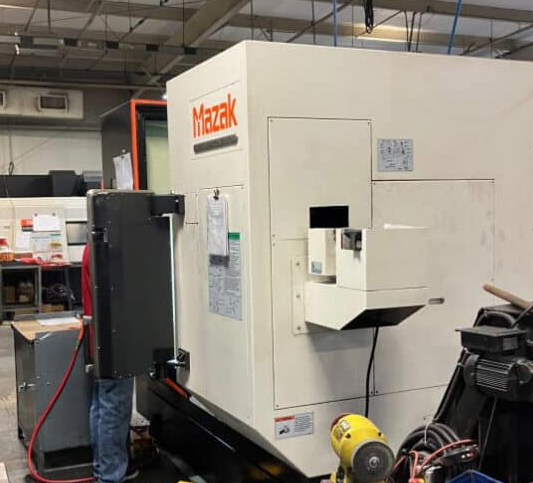

Mazak Mazak Matrix 5,000 rpm Hyper Quadrex 150MSY 5 Axis

Maximum Swing Over Upper Turret: 12.6 in
Maximum Swing Over Lower Turret: 10.63 in
Maximum Machining Diameter Upper Turret: 11.625 in
Maximum Machining Diameter Lower Turret: 6.61 in
Maximum Distance Between Chuck Jaws: 24.375 in
C Axis Programmable Indexing Main Spindle: 0.0001 deg
C Axis Programmable Indexing Sub Spindle: 0.0001 deg
CNC Control: Mazak Matrix
PC Interface
Chip Conveyor
Maximum Bar Capacity: 2.0 in
Maximum Swing Capacity
Main Spindle Nose: A2-6
Main Spindle Bore: 2.99 in
Main Spindle Speed Range: 35–5,000 rpm
Main Spindle Power: 15/20 HP
Main Spindle Torque: 172 ft-lbs
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.4 in
Sub Spindle Speed Range: 35–6,000 rpm
Sub Spindle Power: 10/15 HP
Sub Spindle Torque: 119.5 ft-lbs
Rotary Tool Spindle Speed: 35–6,000 rpm
Upper Turret Type: 12-position drum VDI
Lower Turret Type: 12-position drum VDI
Total Tool Positions per Turret: 12
Tool Shank Height: 3/4 in
Maximum Boring Bar Diameter: 1.25 in
Tool Selection: Bi-directional
Tool Index Time: 0.2 sec
Chuck Preparation Main Spindle: 6 in
Chuck Sub Spindle: 6 in
