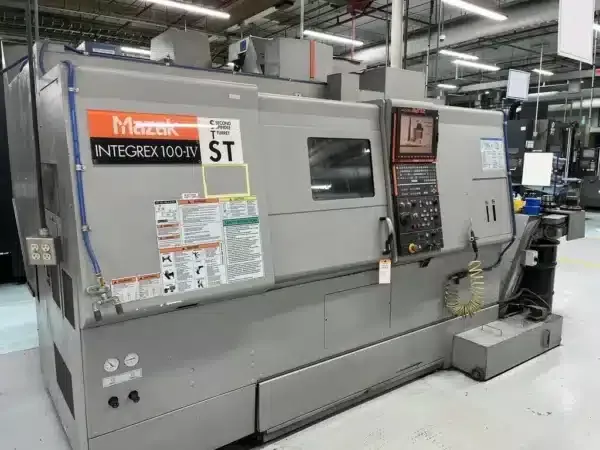

Mazak Mazatrol Matrix 6,000 rpm INTEGREX 100-4ST 2 Axis

X Axis Travel: 16.14 in
Z Axis Travel: 31.69 in

Distance Between Centers: 30 in
C Axis Indexing Resolution: 0.0001 deg
CNC Control: Mazatrol Matrix

Control Options:
Synchronized tapping
Inch/metric conversion
EIA/ISO code input
3D coordinate conversion
Absolute positioning system
XYZ pitch error compensation
EIA dynamic compensation
Mazacc-3D high speed software
Tool tip point control
Tool radius compensation

Bar Capacity: 2.0 in
Maximum Swing: 21.46 in
Maximum Turning Diameter: 21.46 in
Maximum Turning Length: 29.65 in
Main Spindle Speed: 6,000 rpm
Main Spindle Motor Power: 15 hp
Main Spindle Nose: A2-5
Main Spindle Bore: 2.40 in
Main Spindle Chuck Type: Collet

Sub Spindle Equipped
Second Spindle Speed: 6,000 rpm
Second Spindle Motor Power: 15 hp
Second Spindle Nose: A2-5
Second Bar Capacity: 2.0 in
Second Chuck Type: Collet

Total Spindles: 3
Live Milling Maximum Speed: 12,000 rpm
Automatic Tool Changer Type: CAT 40
Tool Magazine Capacity: 40 tools
Single Turret with Live Tooling
Lower Turret

C1 and C2 Synchronous Function
Automatic Chuck Open/Close for Spindle 1 and 2
Through-Spindle Coolant
Coolant Pressure: 213 psi
Chip Conveyor
