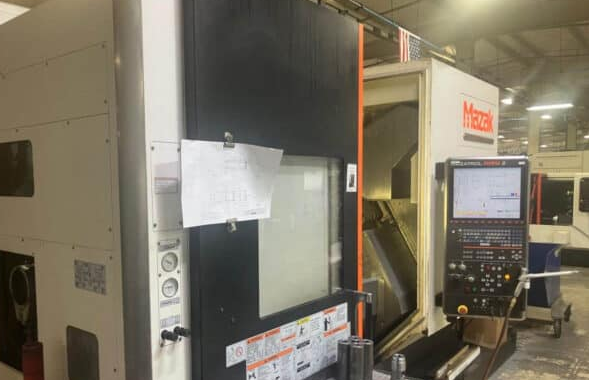

Mazak Mazatrol Matrix 2 5,000 rpm Hyper Quadrex 200MSY 8 Axis

X1 Axis Travel: 8.2 in
Y1 Axis Travel: ±2.0 in
Z1 Axis Travel: 29.875 in
X2 Axis Travel: 5.5625 in
Y2 Axis Travel: +0.75 in / -2.0 in
Z2 Axis Travel: 32.125 in
W Axis Travel: 34.075 in
C Axis Programmable Indexing: 0.0001 deg

CNC Control: Mazatrol Matrix 2
Maximum Swing Over Upper Turret: 14.56 in
Maximum Swing Over Lower Turret: 12.598 in
Maximum Machining Diameter Upper Turret: 13.54 in
Maximum Machining Diameter Lower Turret: 8.26 in
Maximum Distance Between Chuck Jaws: 33.875 in
Maximum Bar Capacity: 2.56 in

Main Spindle Nose: A2-6
Main Spindle Bore: 2.99 in
Main Spindle Speed Range: 35–5,000 rpm
Main Spindle Power: 20/30 HP
Main Spindle Torque: 344.4 ft-lbs

Rotary Tool Spindle Speed: 35–6,000 rpm
Rotary Tool Spindle Power: 7.5 HP
Turret Type: 12-position drum VDI

Chuck Size: 8 in
Chip Conveyor
Parts Catcher
