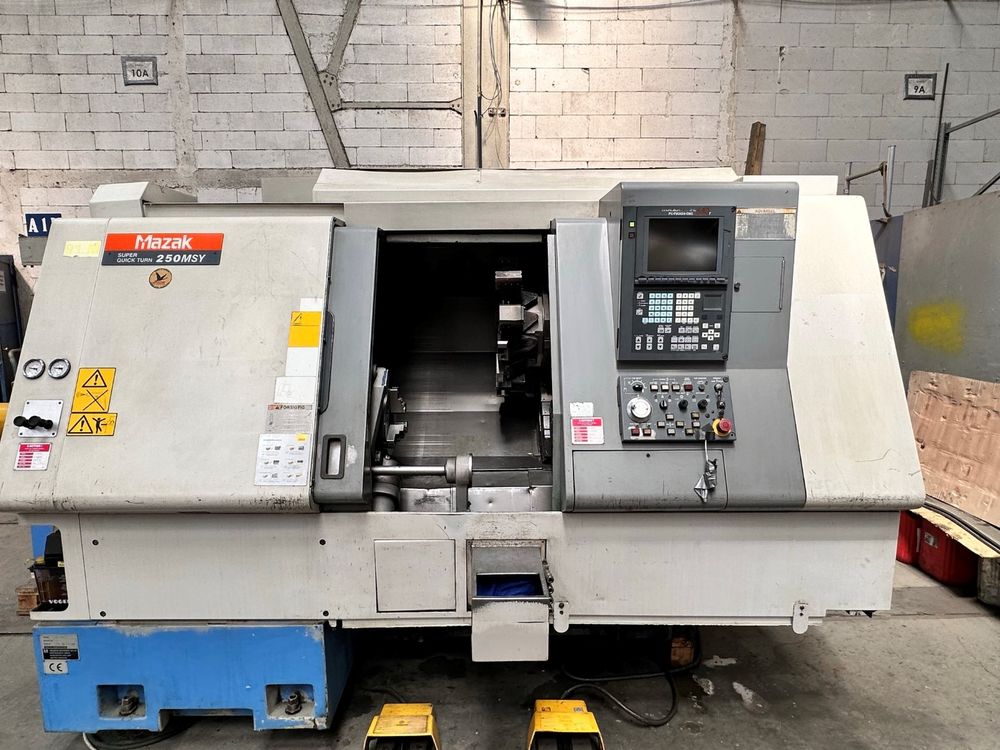

Mazak Mazatrol 640 MT 4000 rpm SQT 250 MSY 3 Axis

Mazak SQT 250 MSY
2003

Spindle nose (main): A2-8
Spindle power (main): 18.5 kW
Spindle speed (main): 35–4000 rpm
Max bar diameter: 64 mm
Max turning diameter: 300 mm
Max diameter over bed: 525 mm
C-axis indexing precision: 0.001°
Spindle nose (sub): A2-6
Spindle power (sub): 7.5 kW
Spindle speed (sub): 35–4000 rpm
Sub spindle travel: 585 mm
Rapid traverse rate: 18 m/min
Distance between spindles: 997 mm
Turret positions: 12
Motorized turret positions: 12
X/Z travel: 180/575 mm
Y-axis stroke: ±50 mm
Live tool speed: 25–4500 rpm
Live tool power: 3.7 kW
Supply voltage: 400 V
Installed power: 41 kW
Floor space: 3080 x 1788 mm
Height: 2200 mm
Machine weight: 6000 kg
Control: Mazatrol 640 MT
