Mazak MAZATROL 640M PRO 1000 RPM INTEGREX E650H 3 Axis

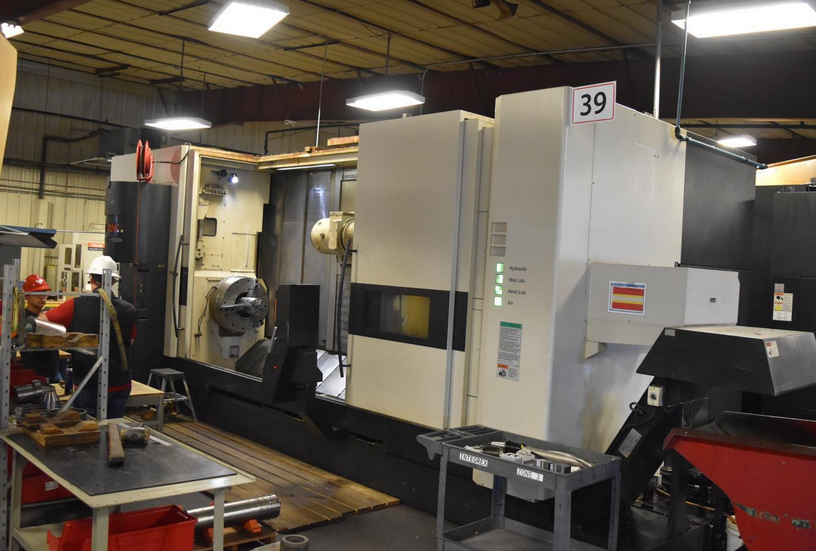

MAZAK INTEGREX E650H
Year: 2005

CNC control: MAZATROL 640M PRO
Number of axes: 5
Chuck size: 24"
Swing: 36"
Max turning diameter: 36"
Center distance: 120"
Bar capacity: 10.2"
Spindle bore: 10.2"
X-axis travel: 40"
Z-axis travel: 122"
Y-axis: Yes
Y-axis travel: 25.6"
Spindle speed: 1000 RPM
Spindle motor: 50 hp
Live milling: Yes
Live milling speed: 10000 RPM
Live milling motor: 50 hp
Turret capacity: 80 tools
Tailstock: Yes
C-axis speed: 1000 RPM
B-axis: 0.0001° contouring
High pressure coolant system
Tool eye
Automatic tool length measurement system
Mist collector
Chip conveyor
Rear chuck mount
Renishaw probe
24" Schunk 3-jaw front mount air chuck
SMW hydraulic steady rest (1.7" – 12.2" capacity)
Boring bar stocker for 100mm and 80mm bars

Control options:
Coordinate rotation and scaling
Helical interpolation
Synchronized tapping
Inch/metric conversion
EIA/ISO code input function
Spiral interpolation
3D cutter compensation
Geometric command
Hobbing
Shape compensation
Thread cutting
Re-threading
Thread start point compensation
Inverse time feed
3D coordinate rotation
Comparison stop
G54.1
Flash tool
Rotation axis shape compensation
G00 slope constant
600 sets variable
Cylinder
Rotary-axis sub micron
Simultaneous 5-axis
Helical tap cycle
Tilted working plane command
Mazatrol planet tap
Tool center point control
