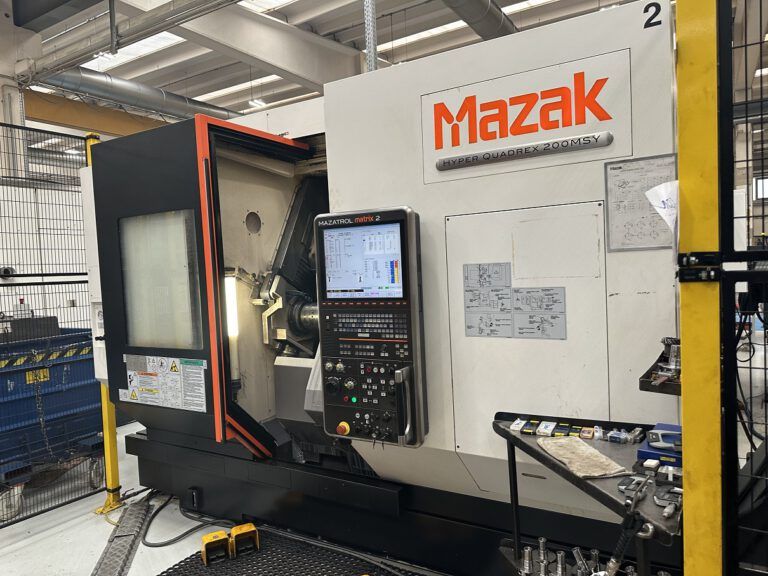

Mazak Mazatrol Matrix 2 5000 rpm HQR 200 MSY 6 Axis

X1-axis travel: 207 mm
X2-axis travel: 141 mm
Y1-axis travel: 100 mm
Y2-axis travel: 70 mm
Z1-axis travel: 760 mm
Z2-axis travel: 815 mm

Max. Turning Diameter Upper Turret: 344 mm
Max. Turning Diameter Lower Turret: 210 mm
Max. Swing Diameter Upper Turret: 370 mm
Max. Swing Diameter Lower Turret: 320 mm

Control: Mazatrol Matrix 2
Main Spindle Power: 22 kW
Main Spindle Speed: 5,000 rpm
Main Spindle Nose: A2-6
Counter Spindle Power: 22 kW
Counter Spindle Speed: 5,000 rpm
Counter Spindle Nose: A2-6
Tool Turret: 2 x 12-position turret
Driven Tool Positions: 2 x 12
Driven Tool Max Speed: 6,000 rpm
Robot interface
Automatic door

Toolsetter right and left side
3-jaw chuck SMW Autoblok 200 GSA
Machine available with other chucks on request
Chip conveyor, ejection to the right
Separate coolant tank
High pressure pumps, 15 bar
Coolant temperature control
