Mazak Mazatrol Matrix 2 CNC Control 12,000 RPM INTEGREX I500V 5 Axis

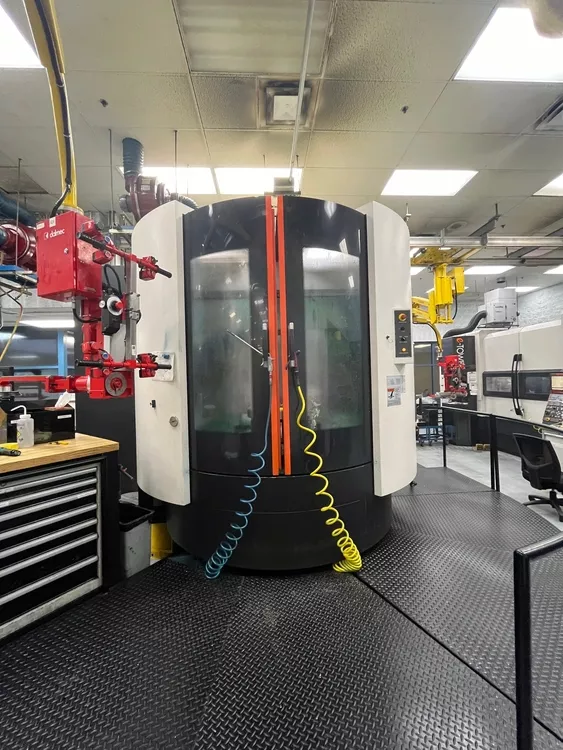

Mazak INTEGREX I500V
2012

Number of Tables: 2
Table Length: 24.8″
Table Width: 24.8″
Main Spindle Horsepower: 30 HP
Main Spindle Speed: 12,000 RPM
Main Spindle Taper: CAT 40

X-Axis Travel: 43.3″
Y-Axis Travel: 31.5″
Z-Axis Travel: 35.43″
A-Axis Travel: -30° to +120°
C-Axis Indexing Accuracy: 0.0001°

Vertical Turning Table Size: 24″
Vertical Turning Table Speed: 1,000 RPM
Vertical Turning Table Horsepower: 40 HP
Automatic Tool Changer Capacity: 80
Control: Mazatrol Matrix 2
Machine Weight: Not Specified

Mazatrol Matrix 2 CNC Control
Prepared for Visual Tool ID and Data Management
Safety Cover for 2 APC
Tool Tip Point 5-Axis Simultaneous
Renishaw RMP600 Ready
Automatic Tool Length Measurement
Scale Feedback X, Y, Z
Spindle Chiller
Ball Screw Coolers on X, Y, Z
MT Connect Prepared
Prepared for Flash Tool System
Laser Mill Tool Measurement NC4 with Air Blast
EIA/ISO Function with Simultaneous 5-Axis
Double Internal Wear Resistant Conveyors
Manual Pulse Generator (MPG)
5-Axis Tool Radius Compensation Software
