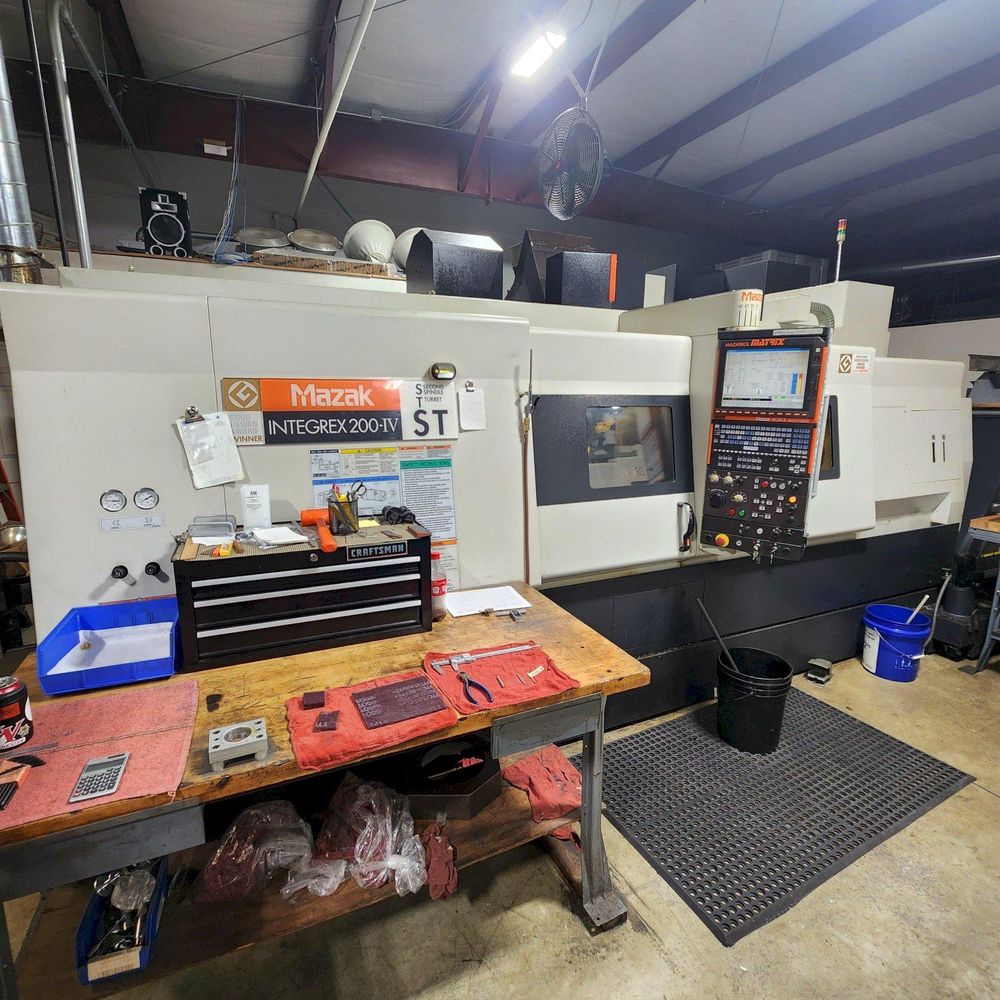

Mazak Mazatrol Matrix 5000 RPM INTEGREX 200-IV-ST 6 Axis

MAZAK INTEGREX 200-IV-ST
Year: 2007

CNC Control: Yes
Control Type: Mazatrol Matrix
Number of Axes: 6
Swing: 26"
Turning Diameter: 26"
Center Distance: 60"
Chuck Size (Main Spindle): 8"
Bar Capacity (Main Spindle): 2.5"
Y Axis Travel: 5.91"
B Axis Travel (Sub Spindle): 225°
Spindle Nose (Main): A2-6
Spindle Speed (Main): 5,000 RPM
Main Motor: 30 HP
Tailstock: No
Y Axis: Yes
Live Tooling: Yes
Sub Spindle: Yes
Sub Spindle Chuck Size: 8"
Sub Spindle Bar Capacity: 2.5"
Sub Spindle Nose: A2-6
Sub Spindle Speed: 4,500 RPM
Sub Spindle Motor: 25 HP
Milling Spindle Speed: 12,000 RPM
Turret Capacity: 9
ATC Capacity: 40

Mazatrol Matrix CNC Control
Main Spindle & Second Spindle
KM63 Spindle
B-Axis Milling Spindle
Y Axis
9-Station Lower Turret
40-Position Automatic Tool Changer
Probing (no probe)
Collet Chuck on Main Spindle
8" 3-Jaw Chuck on Second Spindle
Tool Eye
Consep Chip Conveyor
Coolant System
