Mazak Mazatrol Matrix CNC Control 6,000 RPM Integrex 100-IV ST 8 Axis

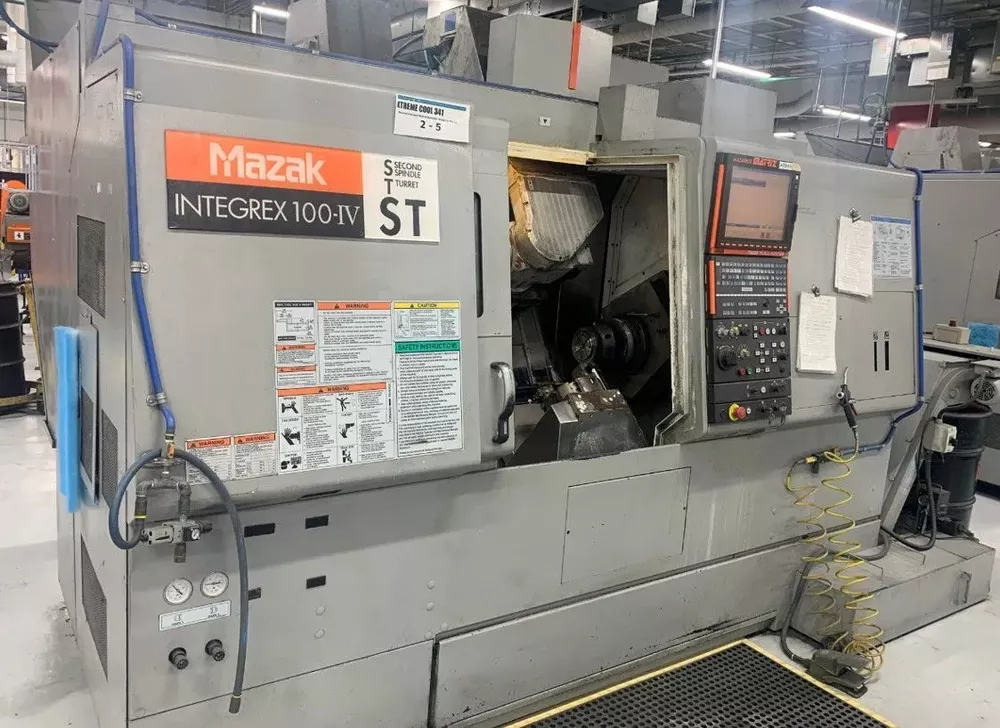

Mazak Integrex 100-IV ST
2013

Chuck Size (Main/Sub): 2" Collet
Max Swing: 21.46"
Max Swing Using Y-Axis: 16.22" – 21.46"
Max Swing Over Cross Slide: 13.86"
Max Cutting Diameter (Upper): 21.46"
Max Machining Length: 29.65"
Max Distance Between Chuck Faces: 28.9"
X-Axis Travel: 16.14"
Y-Axis Travel: ±2.75"
Z-Axis Travel: 31.69"
X2-Axis Lower Travel: 8.66"
Z2-Axis Lower Travel: 30.71"
B-Axis Travel (Pendulum Head): 225°
C-Axis Spindle Movement: 0.0001°
W-Axis Travel (Sub Spindle): 31.3"
Spindle Nose: A2-5"
Spindle Bore: 2.4"
Bar Capacity: 2"
Main Spindle Speed: 6,000 RPM
Main Spindle Motor: 15 HP AC
Upper Turret: 1 Position with ATC
Tool Magazine Capacity: 40 Positions
Tool Taper: CAT 40
Rotary Tool Spindle Speed: 12,000 RPM
Rotary Tool Spindle Power: 7.5 HP
Lower Turret Positions: 9
Lower Turret Type: Drum
Machine Dimensions: 12' L x 92" W x 89" H
Machine Weight: 16,940 lbs
Mazatrol Matrix CNC Control
Synchronized Tapping
Inch/Metric Conversion
EIA/ISO Code Input
3D Coordinate Conversion
Absolute Positioning System
XYZ Pitch Error Compensation Input
EIA Dynamic Compensation
Mazacc-3D High Speed Software
Tool Tip Point Control
Tool Radius Compensation
C1+C2 Synchronous Function
Royal Auto Chuck on Main Spindle
Royal Auto Chuck on Secondary Spindle
Thru-Spindle Coolant
Coolant Pressure: 213 PSI
Chip Conveyor
