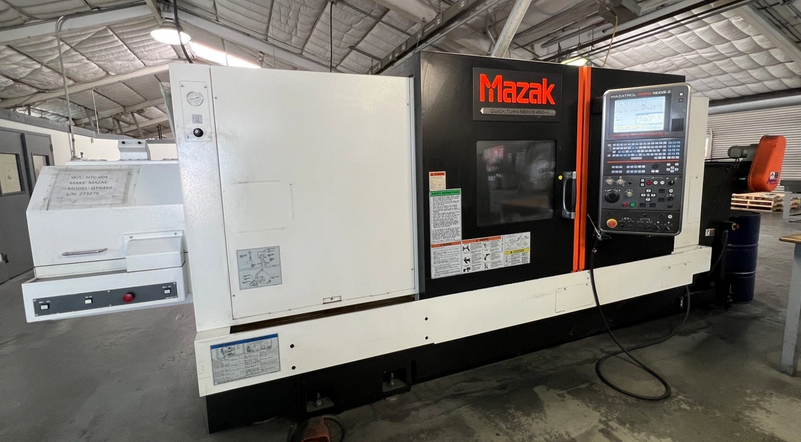

Mazak Mazatrol Matrix II Nexus CNC control 2000 RPM NEXUS QUICK TURN 450-II 2 Axis

X-axis travel: 12.2"
Z-axis travel: 42.12"

Chuck size: 18"
Bar capacity: 7.3"
Maximum turning diameter: 22.83"
Maximum turning length: 38.54"

Spindle speed: 2000 RPM
Spindle nose: A2-15
Spindle motor: 50 HP

Turret positions: 12 tools (bidirectional)
Machine size: 159" x 90"
Machine weight: 20,420 lbs
Electrical: 220V / 3-phase / 60 Hz / 27 kVA

Equipped with:
18" 3-jaw hydraulic thru-hole chuck
Front SMW Autoblok air chuck BB-N-470-191-3
12D / 24-position drum turret
Programmable tailstock
Tailstock thrust select (9-level)
Large spindle bore
Tool eye
High-pressure coolant system (59 PSI, 16 GPM)
Work light
Intelligent safety shield
Mazatrol Matrix II Nexus CNC control
Windows XP operating system
12.1" color LCD
USB interface (2-port)
LAN port
MT Connect preparation
User macros
EIA/ISO input function
Background tool path check
Thread cutting function
Polar coordinates input (G122)
Velocity and feedrate control
Mazak voice adviser
Virtual machining
Re-threading option
Thread start point compensation
Chip conveyor (side discharge)
