Mazak Mazatrol Smooth Ai 4,000 rpm INTEGREX i-350HS 5 Axis

Ref : 2730223-3-MT
Condition : Used
Manufacturer : Mazak
Controller : Mazatrol Smooth Ai
Spindle Speed : 4,000 rpm
Model : INTEGREX i-350HS
Nb Of Axis : 5 Axis
Year(s) : 2023
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

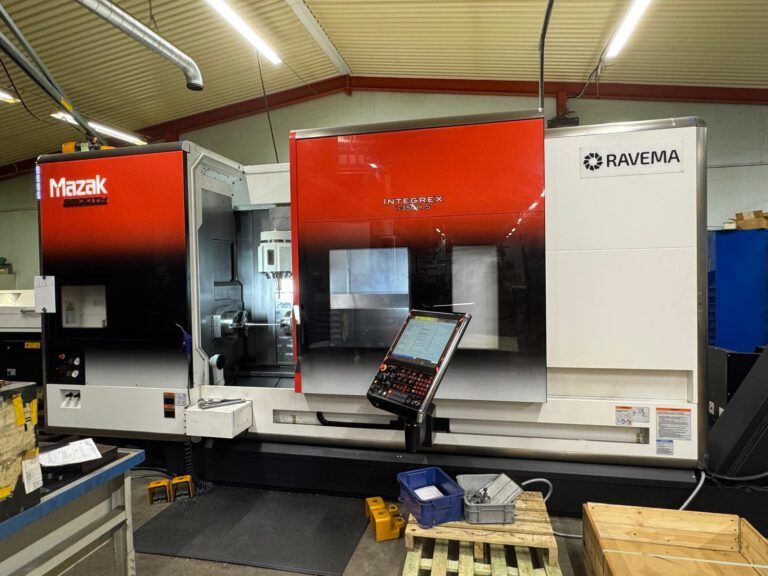

MAZAK INTEGREX i-350HS
2023

Technical Data
Control: Mazatrol Smooth Ai
5-axis simultaneous machining
Max. rotary diameter: 670 mm
Max. turning length: 1,519 mm
X-axis travel: 695 mm
Y-axis travel: 300 mm
Z-axis travel: 1,585 mm
W-axis travel: 1,569 mm
B-axis range: -30° to 210°
Rapid traverse X: 50 m/min
Rapid traverse Y: 40 m/min
Rapid traverse Z: 50 m/min
Rapid traverse W: 30 m/min
Main spindle power: 30 kW
Main spindle max speed: 4,000 rpm
Main spindle C-axis
Bar capacity: 80 mm
Sub spindle power: 26 kW
Sub spindle max speed: 4,000 rpm
Sub spindle C-axis
Milling spindle power: 24 kW
Milling spindle max speed: 12,000 rpm
Milling spindle B-axis resolution: 0.0001°
Milling spindle taper: Capto C6
Tool magazine capacity: 38 tools
Max tool diameter: 90 mm
Max tool diameter (adjacent pockets empty): 125 mm
Max tool length: 400 mm
Max tool weight: 12 kg
Coolant through spindle, up to 70 bar (preparation)
5-axis simultaneous machining package
G00 slope constant
Tool ID system
ID-chip
Synchronized thread cutting
Cylindrical interpolation
Barfeeder interface
Automatic parts catcher
Parts catcher
3-jaw chuck Kitagawa B210X for main spindle
3-jaw chuck Kitagawa B210X for sub spindle
Cromar Series iV swarf conveyor
Drum filter
High pressure pump 15 bar
Barfeeder EMT Super 80
Dimensions (LxWxH): 4,910 x 2,800 x 2,720 mm
Weight: 16,900 kg
Condition: Used, as good as new
Operating hours: approx. 600
