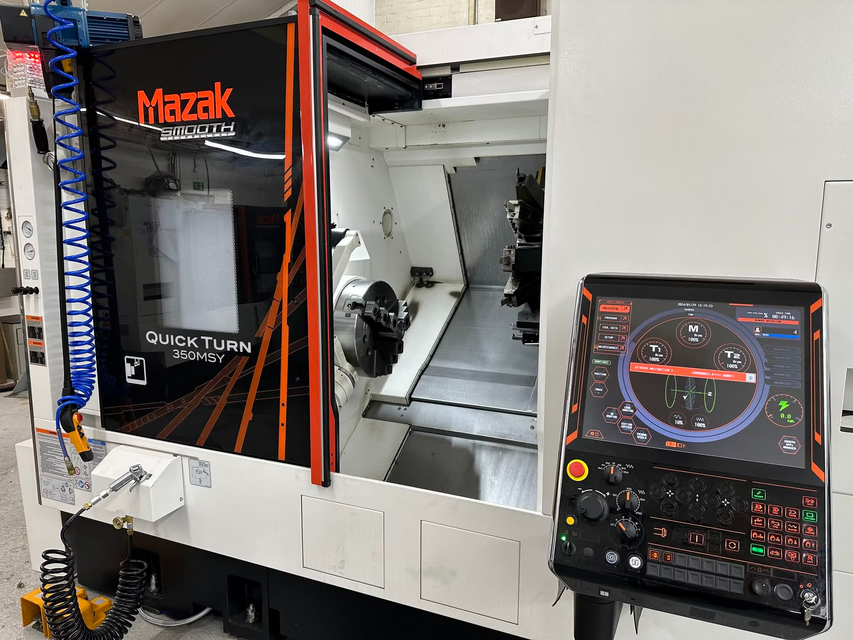

Mazak MAZATROL SMOOTH G 4000 rpm QUICK TURN 350MSY 3 Axis

MAZAK QUICK TURN 350MSY
2022

Bar capacity 102 mm
Chuck size 15"
C axis resolution 0.0001°
Control MAZATROL SMOOTH G
Maximum cutting diameter 420 mm
Maximum cutting length 603 mm
Swing 750 mm
Turret positions 12 station
X axis travel 280 mm
Y axis travel ±75 mm
Z axis travel 670 mm
Spindle speed 4000 rpm
Spindle motor power 30 kW
Milling speed 6000 rpm
Milling motor power 8 kW
Sub spindle chuck size 10"
Sub spindle speed 4000 rpm
Sub spindle stroke 650 mm
Sub spindle motor 26 kW
Sub spindle C axis resolution 0.0001°
Machine dimensions 3700 x 3000 x 2300 mm
Machine weight 9400 kg
3 jaw chuck
C axis on main spindle
C axis on sub spindle
Coolant system
Interlocked guards
Low voltage light
Manuals
Sub spindle
Swarf conveyor
Tool setter
Tooling
Y-axis
