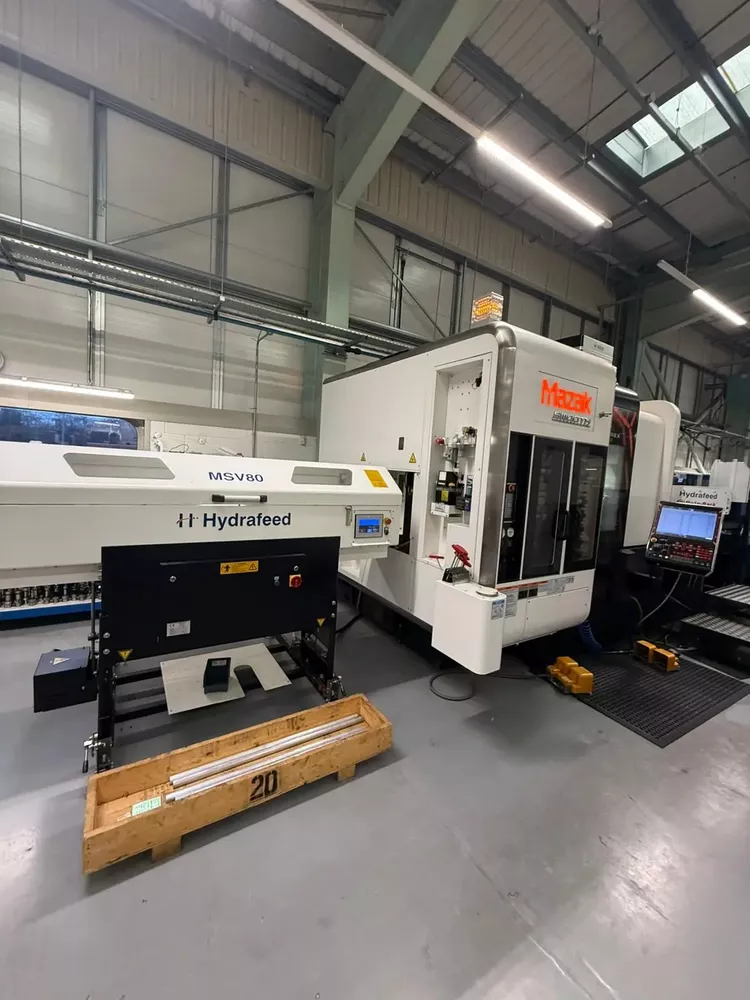

Mazak Mazatrol Smooth X 6000 rpm INTEGREX i-100 S 5 Axis
EUROPE (Western and Northern)
X-axis travel - 450 mm
Y-axis travel - 210 mm
Z-axis travel - 904 mm
W-axis travel - 903 mm
B-axis range - -30 to 210°
C-axis main spindle - 0.0001°
C-axis counter spindle - 0.0001°
Control - Mazatrol Smooth X
5-axis simultaneous machining
Tooleye tool measurement
Renishaw RMP600 touch probe
5-axis machining package
Smooth synchronized thread cutting (milling spindle)
Tool radius compensation / 5-axis
Cylindrical interpolation
Fine spline interpolation
Preparation for multi-tool and flashtool
G00 constant gradient
Chip conveyor with filter
Max rotary diameter - 530 mm
Max turning length - 854 mm
Max bar capacity - 52 mm
Main spindle drive power - 11 kW
Main spindle max speed - 6000 rpm
Main spindle nose - A2-5
Counter spindle drive power - 11 kW
Counter spindle max speed - 6000 rpm
Counter spindle nose - A2-5
Milling spindle drive power - 7.5 kW
Milling spindle max speed - 12000 rpm
Tool magazine capacity - 72 tools
Tool interface - Capto C6
Barfeeder interface
Bar feeder - Hydrafeed MSV80
Unloader for workpieces
Workpiece storage system - Hydrafeed Rota-Rack
