Mazak Mazatrol SmoothG with 19" touchscreen 3300 rpm QT 350 MY 4 Axis
EUROPE (Western and Northern)

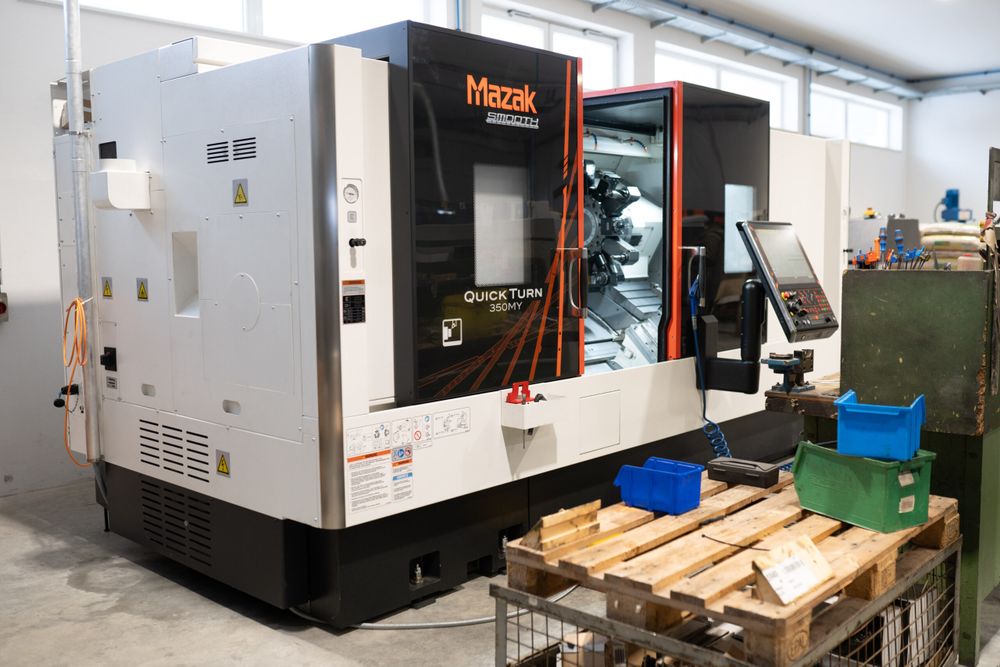

MAZAK QT 350 MY
2023
Control: Mazatrol SmoothG with 19" touchscreen
Main spindle chuck diameter: 12″
Max. swing diameter: 830 mm
Max. turning diameter: 420 mm
Max. bar diameter: 102 mm
Max. turning length: 1625 mm
Main spindle speed range: 35–3300 rpm
Spindle bore: Ø112 mm
Main spindle motor power: 30 kW (40% duty) / 22 kW (continuous)
Tool turret: 12 stations
Driven tools at all turret positions
Milling spindle speed: up to 5000 rpm
Milling spindle motor: 5.5 kW (100% duty) / 7.5 kW (40% duty)
External turning tool size: 25 mm
Internal turning tool size: 50 mm
Drill/mill holder: Ø25 mm / M24 thread
X-axis travel: 270 mm
X-axis rapid traverse: 30 m/min
Y-axis travel: ±75 mm (total 150 mm)
Y-axis rapid traverse: 15 m/min
Z-axis travel: 1625 mm
Z-axis rapid traverse: 33 m/min
C-axis resolution: 0.0001°
Tailstock taper: MT5
Coolant system: high-pressure 15 bar
Automatic parts catcher
Chip conveyor with side discharge
Automatic tool eye for measurement and breakage detection
Self-centering steady rest SMW
Bar feeder interface
Oil mist extraction
Absolute positioning system
Automatic power on/off and warm-up function
Mazak Intelligent Thermal Shield
Mazak Intelligent Safety Shield
LAN interface
SD card interface
Machine length: 4500 mm
Machine width: 2100 mm
Machine height: 2175 mm
Machine weight: 9000 kg
