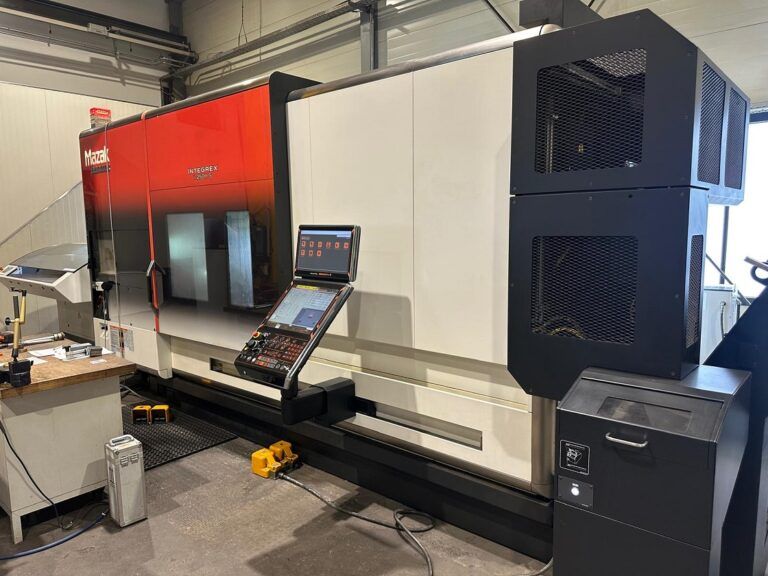

Mazak Smooth Ai 3300 rpm INTEGREX i-250 HS 5 Axis

X-axis travel: 695 mm
Y-axis travel: 300 mm
Z-axis travel: 1585 mm
W-axis travel: 1539 mm
B-axis: -30° to +210°
C-axis (main spindle): 0.0001°
C-axis (sub spindle): 0.0001°

Control: Smooth Ai
5-axis simultaneous machining
Mazak API
MT Connect adapter
Max program memory: 32 MB
EIA/ISO 5-axis simultaneous machining package
Tool tip control (5-axis)
Cutting point control
Spline fine interpolation (EIA)
Path error suppression
Cylinder interpolation
Polar interpolation
V-axis control function
Re-thread function
Synchronous thread cutting
Drilling cycle with torque-dependent chip breaking
Engraving function
Smooth AI vibration compensation
Overload detection

Max turning diameter: 670 mm
Max turning length: 1519 mm
Bar capacity: 102 mm

Main spindle power: 22 kW
Main spindle speed: 3300 rpm
Main spindle torque: 883 Nm
Main spindle nose: A2-11
Big Bore option

Sub spindle power: 18.5 kW
Sub spindle speed: 5000 rpm
Sub spindle nose: A2-6

Milling spindle power: 24 kW
Milling spindle speed: 12000 rpm
Milling spindle taper: Capto C6

Tool magazine: 112 positions
Tool interface: Capto C6

Coolant system: Knoll KF400/2300
Coolant tank capacity: 2300 L
High pressure coolant: 70 bar
Pressure stages: 7
Through-spindle coolant preparation: up to 70 bar
Shower coolant main spindle
Shower coolant sub spindle

Bar feeder: Irco Breuning ILS-MUK-100012
