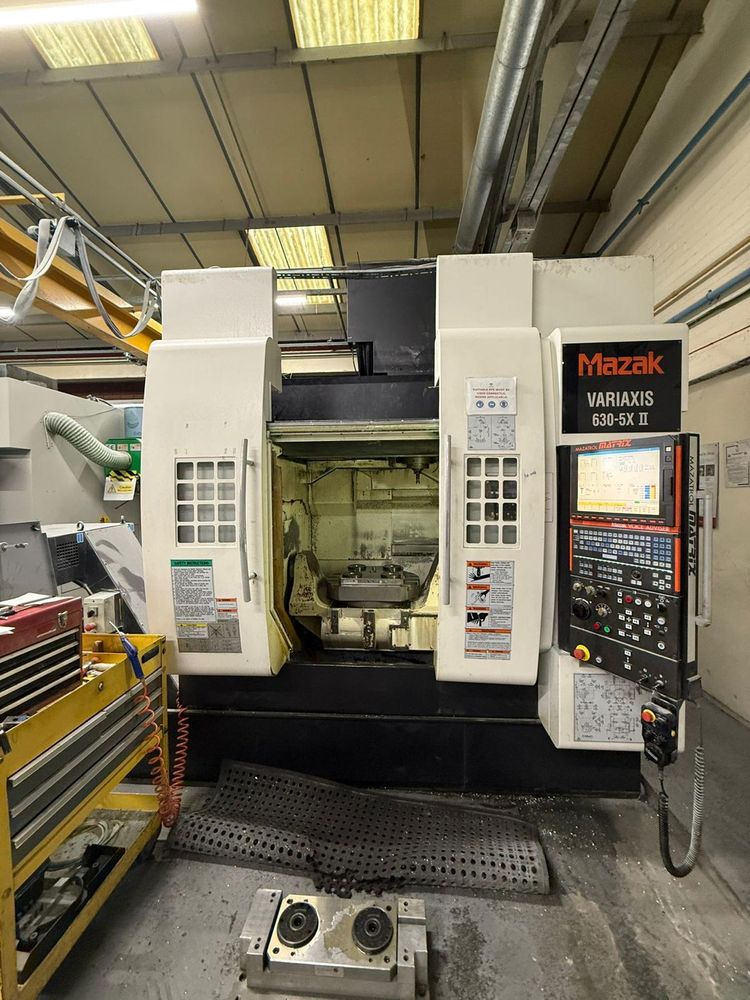

Mazak VARIAXIS 630-5AX II 5 Axis

Traverses XYZ 630 x 765 x 510 mm
A axis -120/+30 degrees (0.001 degree increment)
C axis ±360° (0.001 degree increment)
Control MAZATROL MATRIX
Number of axis controlled 5 simultaneous
Rapid feedrates 50 m/minute
Spindle motor power 26 kW
Spindle speed 12000 rpm
Tool size BT40
Tool change capacity 80 station
Tool change time (chip to chip) 4.5 seconds
Maximum tool length 400 mm
Through spindle coolant pressure 40 BAR (580 psi)
Table size 500 x 500 mm
Maximum workpiece weight 500 kg
Machine dimensions 5100 x 2420 x 3200 mm
Machine weight 16000 kg

5 axis
Coolant
Interlocked guards
Low volt light
Manuals
Spindle probe
Swarf conveyor
Through spindle coolant
Tool breakage sensor
