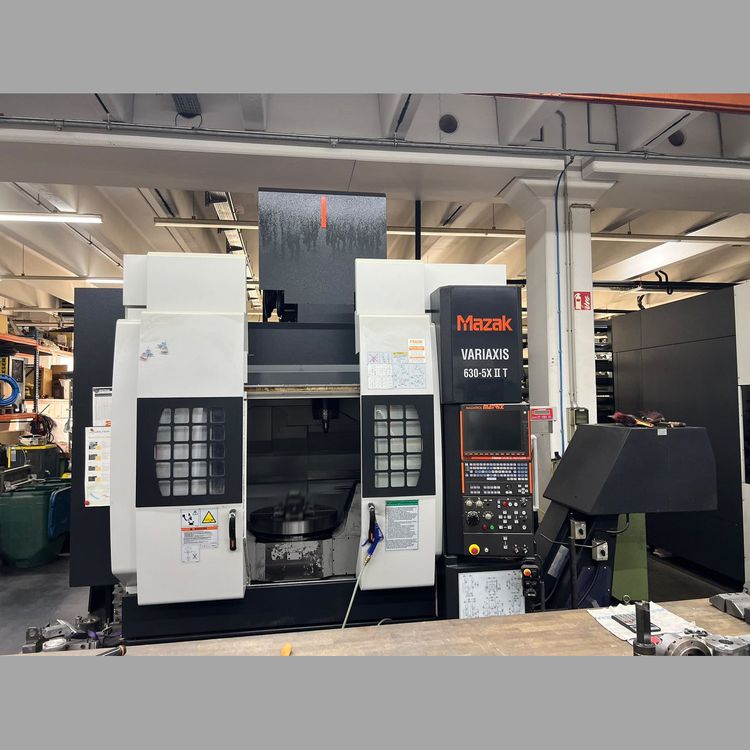

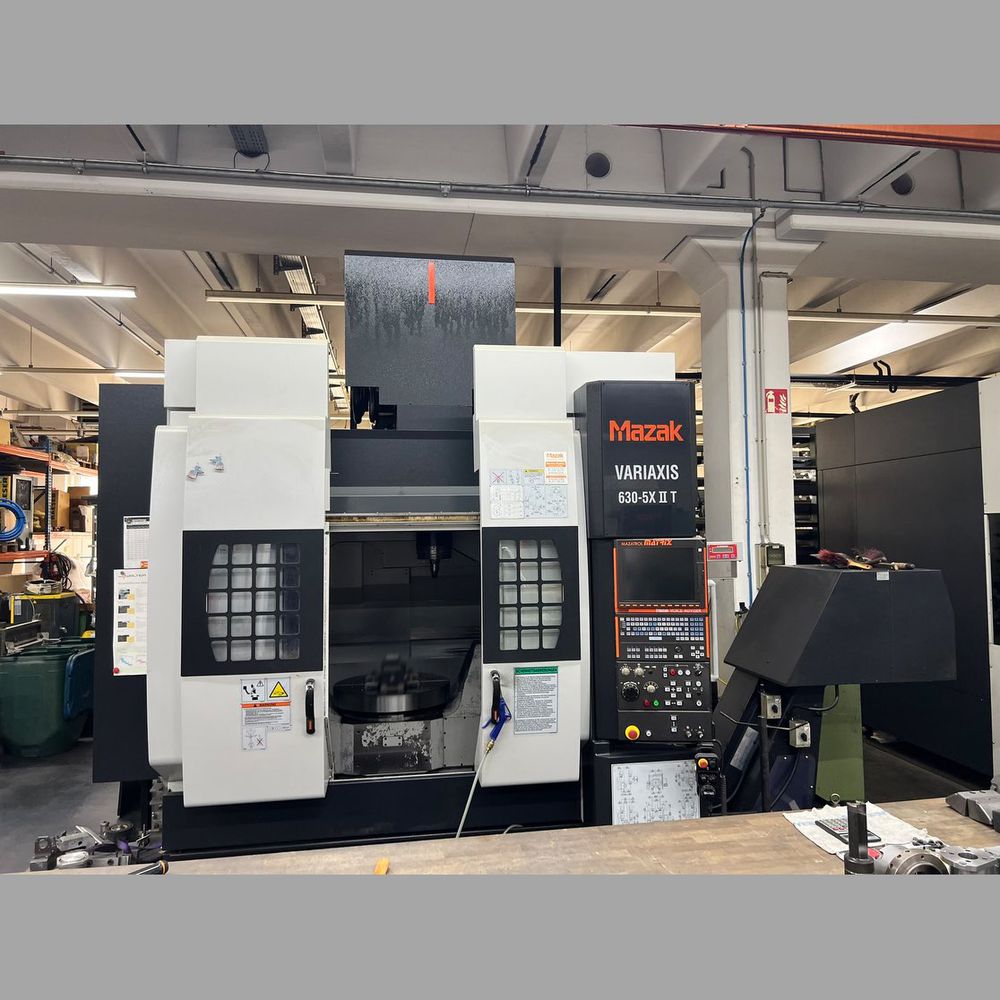

Mazak Variaxis 630-5X II T 5 Axis

MAZAK Variaxis 630-5X II T
Year: 2010

Control: Mazatrol Matrix
Spindle hours: 21738
Program run time: 9643 hours
Shift operation: 1 shift
5-axis machining
X travel: 630 mm
Y travel: 765 mm
Z travel: 600 mm
Rapid traverse X/Y/Z: 52/52/52 m/min
Tool taper: HSK 63
Max. spindle speed: 18000 rpm
Spindle power (10-40/100%): 30/22 kW
Spindle front bearing diameter: 70 mm
Tool magazine capacity: 80 stations
Swivel rotary table
NC-controlled swivel range: +30 to -120°
NC-controlled rotary table: 360°
Rotary table diameter: 630 mm
Max. table speed (milling/turning): 1100 rpm
Workpiece swing diameter: 730 mm
Max. workpiece height: 500 mm
Infrared measuring probe
Tool measurement
Tool breakage monitoring: BRANKAMP
Tool life monitoring
Fully enclosed work area
Work area lighting
Chip conveyor: MAYFRAN Consep 2000
Internal coolant supply
Coolant unit
Mains fuse: 111 A
Machine weight: approx. 14500 kg
