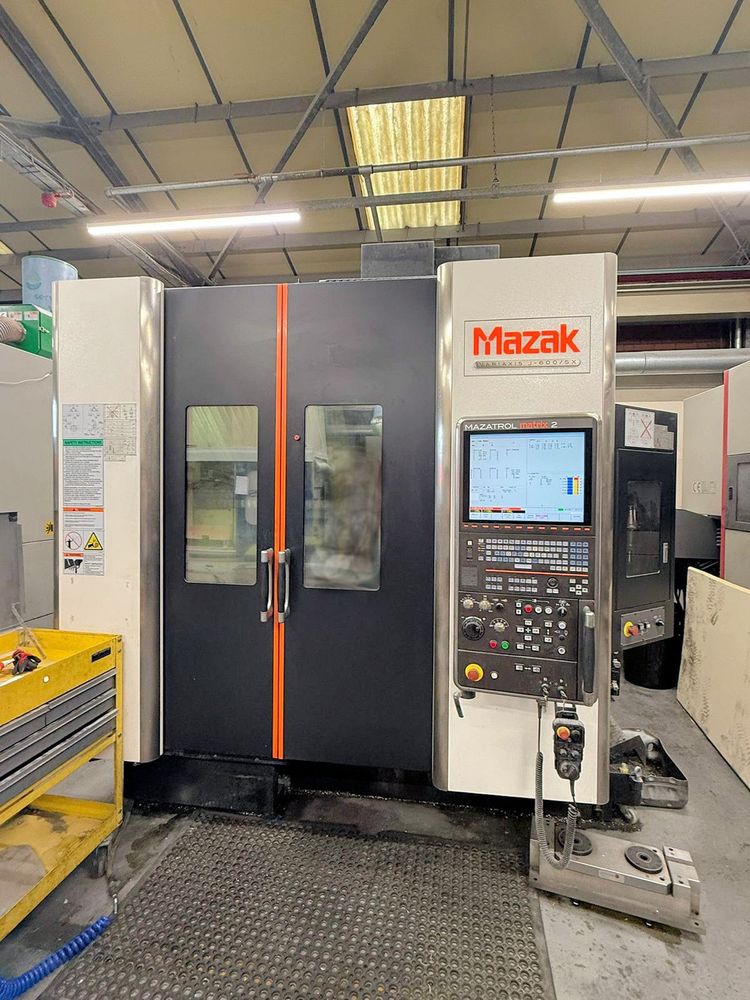

Mazak VARIAXIS J-600 5AX 5 Axis

Rapid feedrates 30 m/min
Traverses XYZ 850 x 550 x 510 mm
B axis -120 / -90 degrees
C axis 0.001 degree
Control MAZATROL MATRIX 2
Coolant
Interlocked guards
Low volt light
Remote hand wheel
Through spindle coolant
Spindle motor power 11/7.5 kW
Spindle speed 12000 rpm
Table size 600 x 500 mm
Maximum workpiece size 730 x 450 mm
Maximum workpiece weight 500 kg
Min - Max height under spindle 70 ~ 580 mm
Tool change capacity 30 station
Tool change time (chip to chip) 6.2 seconds
Tool size DIN40
Maximum tool diameter 90 mm
Maximum tool diameter with empty adjacent pockets 130 mm
Machine dimensions 3060 x 2400 x 3325 mm
Machine weight 11000 kg
